All stations have available protection class 1, equipotential bonding (normal state hard grounded), antistatic housing and automatic tool recognition
Temperature control via buttons, 3 digital display for actual and target values, external input device for tume function and locking function

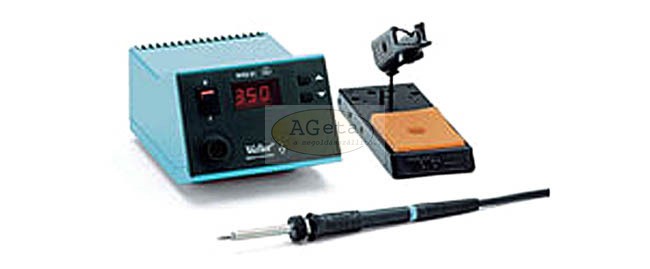

composed of supply device PUD 81, soldering pencil WSP 80 and holder WPH 80
Soldering tips see LT-Series (also lead-free!)
Temperature control via buttons, 3 digital display for actual and target values, external input device for tume function and locking function
composed of supply device PUD 81, soldering pencil WSP 80 and holder WPH 80
Soldering tips see LT-Series (also lead-free!)
| Specification: | |
|---|---|
| Channel: | 1 |
| Power supply: | 230 V |
| Output power: | 80 W |
| Protection class: | 1 |
| Temperature range: | 50°C - 450°C |
| Temperature accuracy: | ± 9°C |
| Temperature stability: | ± 5°C |
| Display: | LED |
| Setting: | Buttons |
| Equipotential bonding: | over a 3.5 mm socket |
| USB Interface: | No |
| Dimensions: | 166 x 115 x 101 |
| Dimensions (mm) | |
| (L x W x H) |
| Item: | Description: |
|---|---|
| WSD81 | Soldering station, complete |
