The Weller Magnastat system operates through a ferro-magnetic device which changes its characteristics when specific temperatures are reached. This causes it to either attract or repel a permanent magnet which operates a power supply switch. In this way power to the heating element can be quickly switched on or off to either provide extra power for soldering operations or reduced power when idling. Various preselected tip temperatures (260°C, 310°C, 370°C, 425°C, 480°C) are available for different soldering tasks. The unit is not suitable for ESD application because the iron is not antistatic.

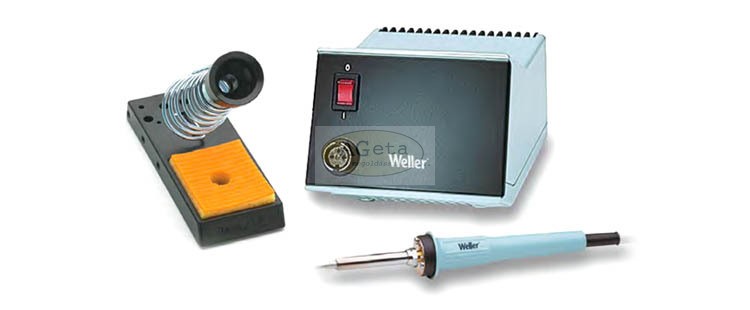

PU-S supply unit, TCP S soldering iron and holder.
| Channels: | 1 |
| Power supply: | 230 V, 50 Hz |
| Heating voltage: | 24V, 50 (60) Hz |
| Soldering iron: | max. 50 W at 24 V |
| Display: | No |
| Temperature control: | Zweipunktregler |
| Equipotentional bonding: | Yes |
| USB Interface: | No |
| Control: | 2-Punktregelung |
| with Temperaturfühler |
| Dimensions: | 166 x 115 x 101 |
| (L x W x H) | |
| |
| Dimensions (mm) | |
| WTCP51 | Magnastat soldering station |
