Részletek
- for solder-free electrical connections
- repetitive, high crimping quality due to precision profiles and integral lock (self-releasing mechanism)
- these tools have been set precisely (calibrated) in the factory
- high transmission of force thanks to lever action for fatigue-reduced working
- good handling thanks to favourable handle position, low weight, short design and ergonomically shaped handles
- all stressed parts are made of special steel, oil-hardened and tempered
- head burnished, two-colour dual component handles
* and connector
| Capacitance: | |
|---|---|
| non-insulated butt connectors: | 1.5 up to 10.0 mm² |
| AWG 15 up to 7 | |
| non-insulated ring terminals: | 0.5 up to 10.0 mm² |
| AWG 20 up to 7 | |
| open connector 4,8mm: | 0.1 up to 2.5 mm² |
| AWG 27 up to 13 | |
| ofpen connector 6,3mm: | 0.5 up to 6.0 mm² |
| AWG 20 up to 10 | |
| insulated ring terminals: | 0.5 up to 6.0 mm² |
| AWG 20 up to 10 | |
| heat shrinkeable sleeve connectors: | 0.5 up to 6.0 mm² |
| AWG 20 up to 10 | |
| wire end ferrules: | 0.5 up to 6.0 mm² |
| AWG 20 up to 10 | |
| Koax, BNC: | RG 58 / 174 / 188 / 316 |
| Item: | Application: | Length: | Weight: |
|---|---|---|---|

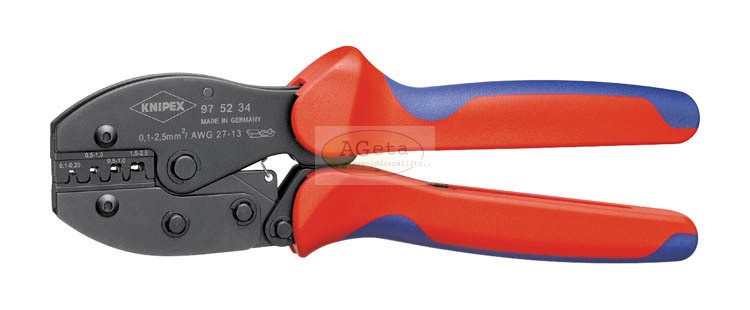

| K975234 | offene connector 4.8mm | 220 mm | 490 g |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | KNIPEX |
