Részletek
- for crimping end sleeves (ferrules) according DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
- crimping in marked half-round dies for secure connections between the sleeve and the conductor
- 8 extremely deep troughs with conical side faces
- special tool steel, oil-hardened and tempered
- polished, with two-colour dual component handles
| Capacitance: | |
|---|---|
| wire end ferrules: | 0.25 / 0.5 / 0.75 - 1.0 / 1.5 / 2.5 / 4.0 / 6.0 / 10.0 / 16.0 mm² |
| AWG 23 / 20 / 18 - 17 / 15 / 13 / 11 / 10 / 7 / 5 |
| Item: | Application: | Length: | Weight: |
|---|---|---|---|

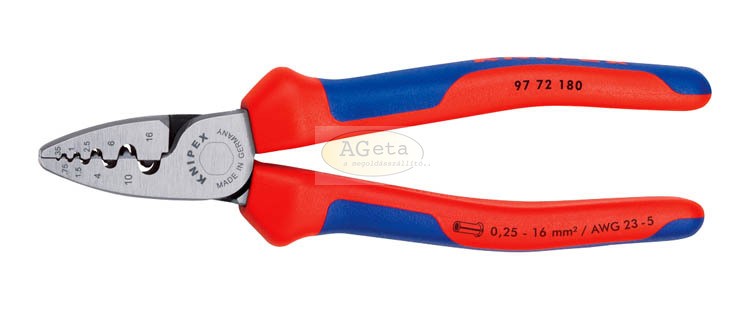

| K9772180 | wire end ferrules | 180 mm | 265 g |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | KNIPEX |
