Részletek
Series AW
- solder tag terminations
- metal spindle
- metal bush
| Specification: | |
|---|---|
| Tolerance: | ± 10% (standard) |
| ± 20% (< 10 Ω) | |
| Rated power (40°C): | 4.0 W |
| Max. Operating voltage: | 500 V |
| Temperature range: | -40°C up to +90°C |
| Taper: | linear |
| independent linearity: | ± 2% |
| Rotation angle: | 300° ± 10° |
| Torque: | 0.7 Ncm up to 3.6 Ncm |
| Dimensions (mm) | |
| d2: | 6.0 |
| l: | 50.0 |
| d1: | M10 x 0.75 |
| p: | 8.0 |
| Item: | Value: | Temperature coefficient: | Resolution: |
|---|---|---|---|

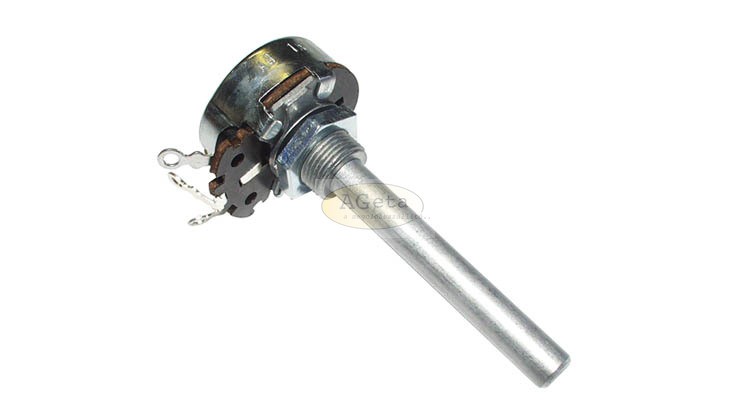

| DP4W/250R | 250 Ω | -20 ± 60 ppm/°C | 0.35% |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | AB Elektronik Sachsen GmbH |
