Részletek
- Pitch ≥ 7.5 mm
| Specification: | |
|---|---|
| Dielectric: | polyethylene-terephthalate film |
| Electrodes: | aluminium, vacuum-deposited |
| Encapsulation: | flame retardent plastic case, |
| UL 94 V-0 | |
| Colour: | red |
| Imprint: | black |
| Epoxy resin: | red |
| Temperature range: | -55°C up to +100°C |
| Test specifications: | according to IEC 60384-2 or EN 130 400 |
| Climatic test category: | 55/100/56 according to IEC |
| Dimensions (mm) |
| Item: | Capacitance: | Tolerance: | Voltage: | W: | H: | L: | d: | Pitch: |
|---|---|---|---|---|---|---|---|---|

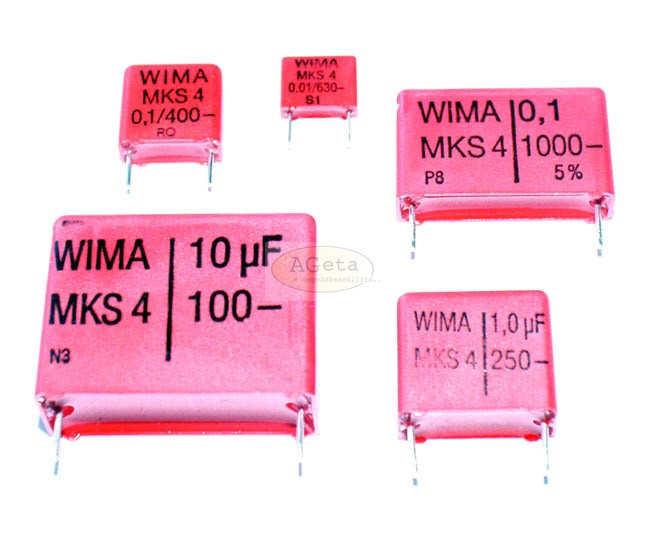

| MKS4I2,2GC | 2.2 ľF | ± 10% | 400 V | 11.0 | 21.0 | 31.5 | 0.8 | 27.5 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | WIMA |
