Részletek
- Pitch 2.5 mm
| Specification: | |
|---|---|
| Dielectric: | polyethylene-terephthalate film |
| Electrodes: | aluminium, vacuum-deposited |
| Encapsulation: | flame retardent plastic, |
| UL 94 V-0 | |
| Colour: | red |
| Imprint: | silver |
| Epoxy resin: | red |
| Tolerance: | ± 10% |
| Temperature range: | -55°C up to +100°C |
| Test specifications: | according to IEC 60384-2 or EN 130 400 |
| Climatic test category: | 55/100/21 according to IEC |
| Dimensions (mm) |
| Item: | Capacitance: | Voltage: | W: | H: | L: |
|---|---|---|---|---|---|

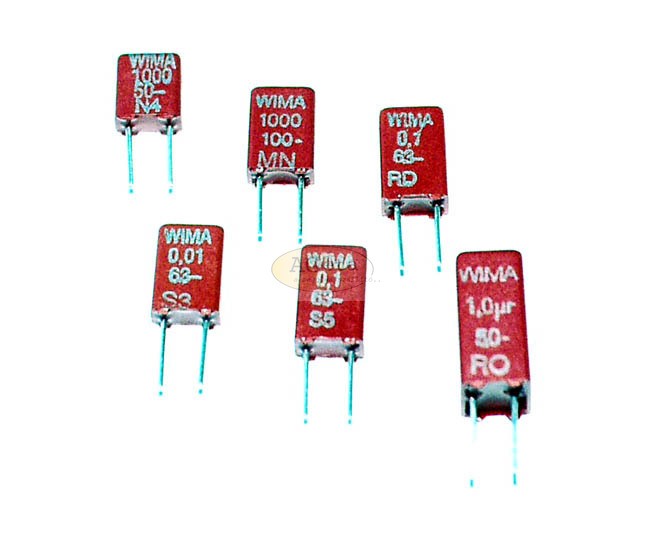

| MKS02D0,1 | 100 nF | 63 V | 3,0 | 7,5 | 4,6 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | WIMA |
