Részletek
- Class X1, Y1 according to IEC 60384-14.2
- Halogen-free according to IEC 61249-2-21
- Ammopack
- Pitch 10.0 mm
| Specification: | |
|---|---|
| Dielectric: | ceramic |
| Electrodes: | silver |
| Encapsulation: | Epoxy resin, UL 94 V-0 |
| Voltage rating: | 760 Vac (X1) / 500 Vac (Y1) |
| Temperature range: | -40°C up to +125°C |
| Packing unit: | 750 pcs |
| Dimensions (mm) |
| Item: | Capacitance: | Tolerance: | Material: | Pitch: | D: |
|---|---|---|---|---|---|

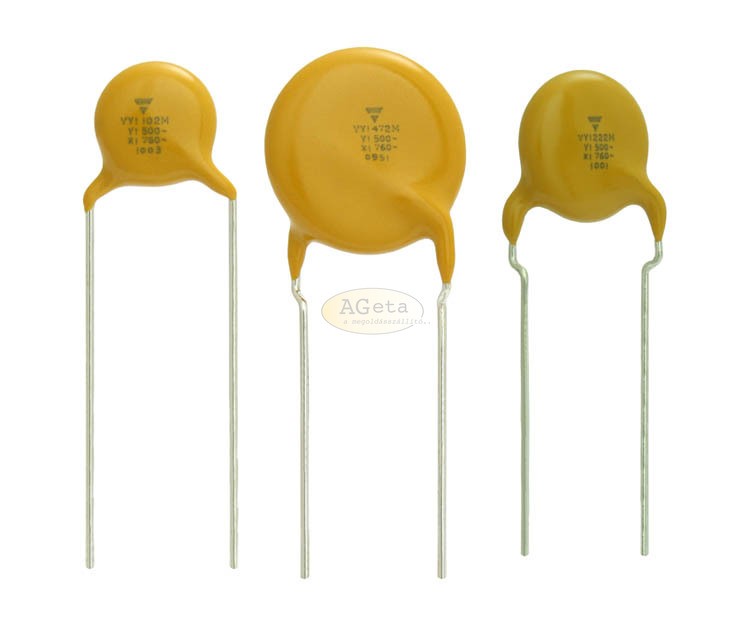

| VY1AMX322MK | 220 pF | ± 10% | Y5S | 10.0 | 8.0 |
További információk
| Minimálisan rendelhető mennyiség | 50.0000 |
|---|---|
| Gyártó | VISHAY |
