Further pin numbers up to 12 pin are available on demand!
| Specification: | |
|---|---|
| Voltage rating VDE: | 250 V |
| Current rating VDE: | 24 A |
| Rated cross section | |
| Single wire (solid): | 4.0 mm² |
| Stranded wire (flexible): | 2.5 mm² |
| stranded with ferrule: | 2.5 mm² |
| Stripped length: | 7.0 mm (vertical) |
| 6.0 mm (horizontal) | |
| Terminal screw: | M 3 |
| Allowed torque: | 0.5 Nm |
| Terminal block: | CuZn |
| Wire guard: | stainless steel |
| Insulator: | PA |
| Temperature range: | -30°C / +105°C |
| Soldering temperature: | 265°C |
| Peak soldering time: | 3-4 s |
| Inflammability class: | UL 94 V-0 |
| Colour: | grey |
| Item: | Description: | Factory number: |
|---|---|---|

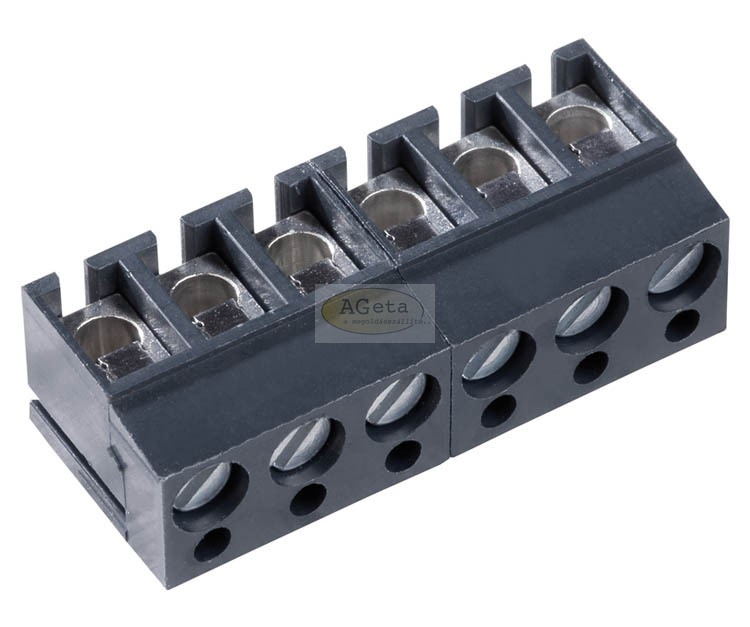

| PKA4-508H | 4 pin horizontal | AKZ 120 / 4 DS 5.08 H |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | PTR A Phoenix Mecano Company |
