Részletek
- protection against vandalism
- for use in harsh environments
- high quality design
- reliable tactile feedback of input
| Specification: | |
|---|---|
| Electrical characteristics | |
| Switching capacity: | max. 250 VAC |
| max. 125 VAC | |
| Switching crrent: | max. 3000 mA |
| max. 5000 mA | |
| Rated beaking cpacity: | 1250 W |
| Lifetime: | 20E4 |
| Contact resistance: | ≤ 30 mΩ |
| Insulation resistance: | > 100 MΩ |
| Bouncing time: | < 5 ms |
| Mechanical characteristics | |
| Actuating force: | 4.5 N |
| Actuating travel: | 1 mm |
| Shock Resistance: | 07 IK DIN EN 50102 |
| Climatical data | |
| Operating temperature: | -25°C up to +85°C |
| Storage temperature: | -25°C up to +85°C |
| Material | |
| Housing: | Stainless steel |
| Actuator: | Stainless steel |
| Light Conductor | PC |
| Gasket: | NBR70 |
| Micro switch holder: | PA |
| Protection class: | IP 67 |
| Item: | Switching function: | Version: | Actuator: |
|---|---|---|---|

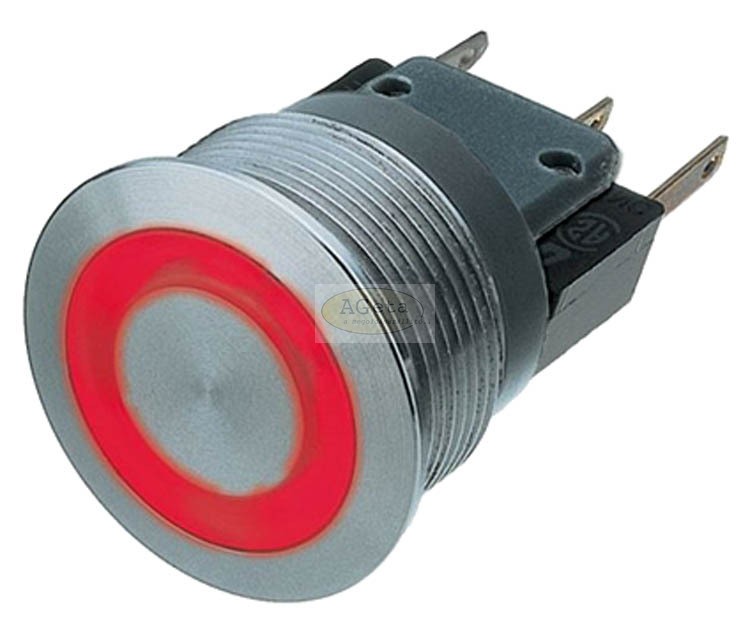

| MSM19RISFRT | single pole double throw | max. 3000 mA / 250 VAC | Ring red illuminated |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Schurter Electronic Components |
