Részletek
- vandal-proof
- excellent quality
- secure tactile input-feedback
- solder pin
* at rated breaking capacity!
| Specification: | |
|---|---|
| Electrical characteristics | |
| Switching capacity: | min. 4 VDC |
| max. 48 VDC | |
| Switching crrent: | max. 125 mA |
| Rated beaking cpacity: | 1.2 W |
| Lifetime*: | 10E6 |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | > 100000 kΩ |
| Bouncing time: | < 5 ms |
| Mechanical characteristics | |
| Actuating force: | 3.7 N |
| Actuating travel: | 0.4 mm |
| Tightening torque: | with Panel seal 0.4 Nm |
| without Panel seal 1.5 Nm | |
| Climatical data | |
| Operating temperature: | -20°C up to +60°C |
| Storage temperature: | -20°C up to +60°C |
| Material | |
| Socket: | PA |
| Housing: | Stainless steel |
| Zinc diecasting nickel plated | |
| Actuator: | Zinc diecasting nickel plated |
| Snap Dome: | Gold flash |
| Contacts: | CuZn37 2,5ľm AG |
| Protection class | IP 40 (front) |
| IP 65 (switch chamber) |
| Item: | Switching function: | Actuator: |
|---|---|---|

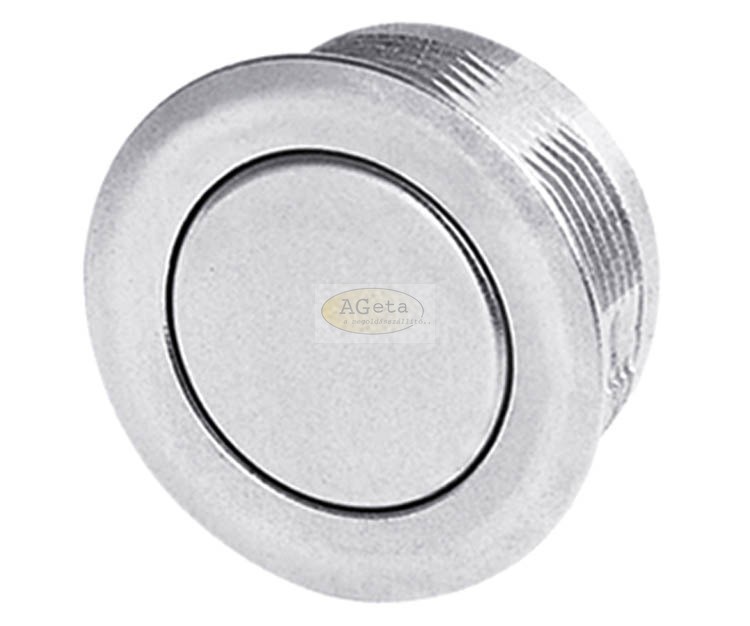

| MCS19MU | single pole normally open | without illumination |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Schurter Electronic Components |
