Részletek
| Specification: | |
|---|---|
| Mechanical design: | |
| Contact system: | Sliding bridge contact |
| Contact arrangement: | 1 NC + 1 NO or 2 NC or 2 NO |
| Mounting: | with ring nut |
| Housing: | thermoset |
| Collar: | PC black |
| Key: | PC |
| Flame class: | UL 94 V 1 |
| Contact materials: | Ag |
| Terminals: | Screw mount terminal nickel plated |
| Mechanical characteristics: | |
| Operation force: | ≤ 9.5 N |
| Operation path: | 5 mm |
| Switching travel: | |
| NC OFF: | 2.1 mm |
| NO ON: | 3.7 mm |
| Robustness: | > 100 N |
| Electrical characteristics: | |
| Switching voltage: | max. 250 VAC |
| Switching current: | max. 2 A |
| Contact resistance: | < 200 mΩ after operating life |
| Operating life: | 100000 operations |
| Other specifications: | |
| Protection class: | IP 40 from front side |
| IP 65 with sealing cap | |
| Weight: | approx. 14 g |
| Ambient temperature: | -25°C up to +85°C |
| Storage temperature: | -40°C up to +90°C |
| Resistance to environment: | Constant environment according to IEC 69-2-3 and 2-30 |
| Variable environment according to IEC 68-2-14 and 2-33 |
| Item: | Colour: | Type: |
|---|---|---|

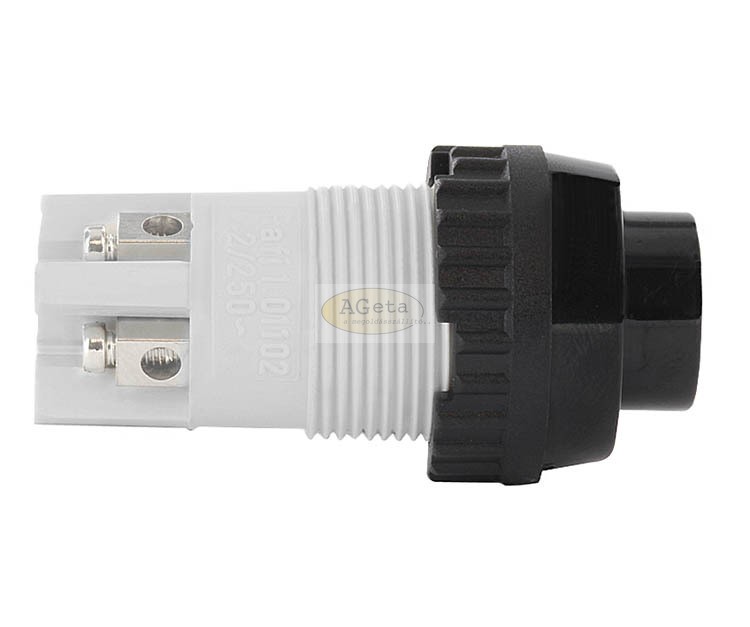

| 101102001SW | black | 2 x NO |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | RAFI |
