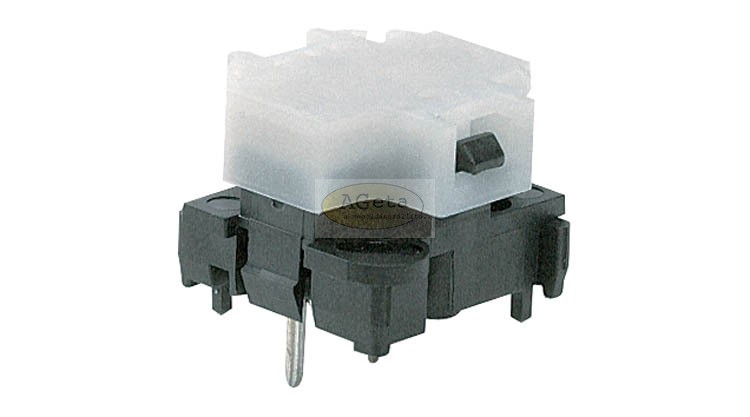

keymodules up to 100 mA 28 V
- comfortable actuation characteristic
- low operating noise
The integrated LEDs require current limiting to 20 mA maximum!
| Specification: | |
|---|---|
| Switching capacity: | 100 mA 28 V |
| Mechanical operating life: | 100E4 |
| Actuating force: | approx. 0.7 N |
| Contact resistance: | < 250 mΩ |
| Insulation resistance: | > 100 MΩ |
| Temperature range: | -20°C up to +70°C |
| Contact gap: | < 3 mm |
| Termination: | PCB terminal |
| Actuator: | POM |
| Housing: | PBTP |
| Terminals: | tin plated |
| Contacts: | gold |
| Item: | Switching function: | Version: | Spacing: |
|---|---|---|---|
| MQ64250101 | single pole normally open | LED retrofittable | 16 mm or 19 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
