enclosed snap action switches up to 16 (6) A 400 VAC
- spring contact system with bridging contacts
- large over-travel allows wide tolerance compensation
- actuator can be approached from all directions
- suitable for appliances of protection class II
| Specification: | |
|---|---|
| Switching capacity: | 16 (6) A 400 VAC |
| Mechanical operating life: | 10E4 |
| Actuating force: | approx. 3.5 N |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 1500 V |
| Resistance to tracking: | PTI 250 |
| Protection class: | IP 40 |
| Temperature range: | -40°C up to +85°C |
| Flammability: | UL 94 V-0 |
| Heat resistant: | up to +850°C (category D) |
| Contact gap: | ≥ 3 mm |
| Termination: | quick-connect terminal 6.3 mm |
| Actuator: | fibre-glass reinforced PA |
| Housing: | fibre-glass reinforced PA |
| Terminals: | silver plated |
| Contacts: | silver |
| Approval marks: | ENEC, UL, CSA |
| Item: | Switching function: |
|---|---|

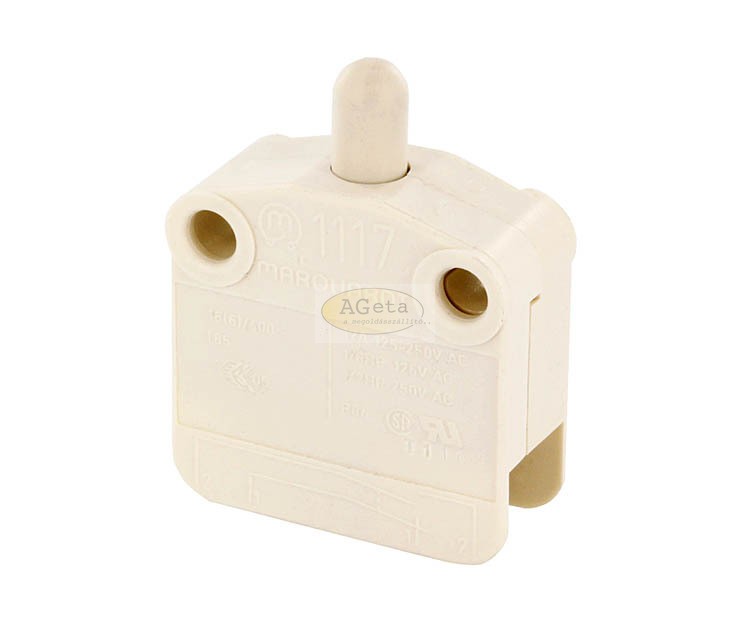

| MQ11170206 | single pole normally closed |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
