miniature snap action switches up to 16 A 250 VAC
- suitable for appliances of protection class II
| Specification: | |
|---|---|
| Switching capacity: | 16 A 250 VAC |
| Mechanical operating life: | 2E6 (Basic type 1080) |
| 20E4 (Basic type 1085) | |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Resistance to tracking: | PTI 250 |
| Protection class: | IP 40 (actuating side) |
| Temperature range: | -40°C up to +125°C |
| Flammability: | UL 94 V-0 |
| Heat resistant: | up to +850°C |
| Actuator: | fibre-glass reinforced PETP |
| Housing: | fibre-glass reinforced PA / PETP |
| Terminals: | silver plated / CuZn |
| Contacts: | silver |
| Approval marks: | ENEC, UL, CSA |
| Item: | Switching | Actuator: | Actuating | Termination: |
|---|---|---|---|---|
| Function: | Force: | |||

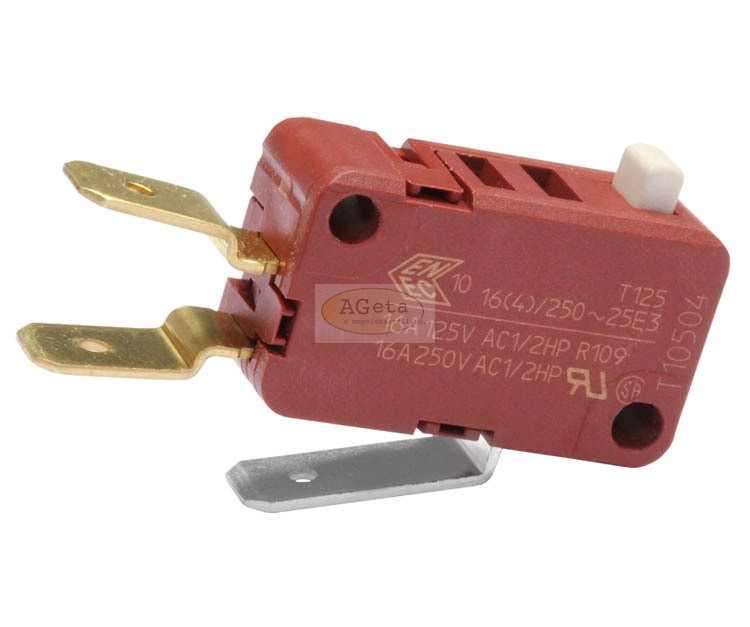

| MQ10800403 | single pole | standard | ≤ 1.0 N | quick-connect terminal 6.3 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
