subminiature snap action switches up to 5 A 250 VAC
- suitable for appliances of protection class II
| Specification: | |
|---|---|
| Switching capacity: | 5 A 250 VAC |
| Mechanical operating life: | 1000E4 (standard) |
| 100E4 (with additional actuator) | |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 1500 V |
| Resistance to tracking: | PTI 175 |
| Protection class: | IP 40 (actuating side) |
| Temperature range: | -40°C up to +100°C |
| Flammability: | UL 94 V-2 |
| Heat resistant: | up to +850°C (category D) |
| Actuator: | PA |
| Additional actuator: | stainless spring steel / fibre-glass reinforced PA |
| Housing: | PBTP |
| Terminals: | silver plated |
| Contacts: | silver |
| Approval marks: | ENEC, UL, CSA |
| Item: | Switching | Actuator: | Actuating | Termination: |
|---|---|---|---|---|
| Function: | Force: | |||

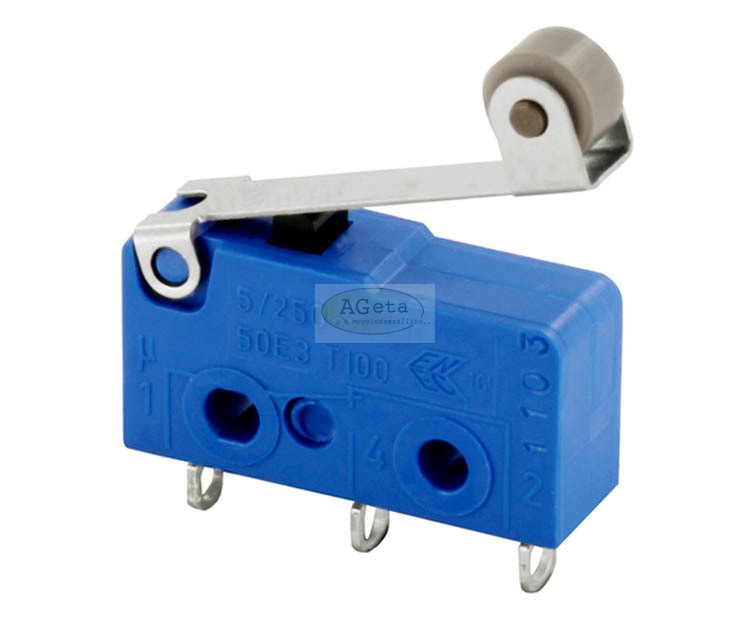

| MQ10505702 | single pole | roller lever | ≤ 0.6N | solder connection |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
