Részletek

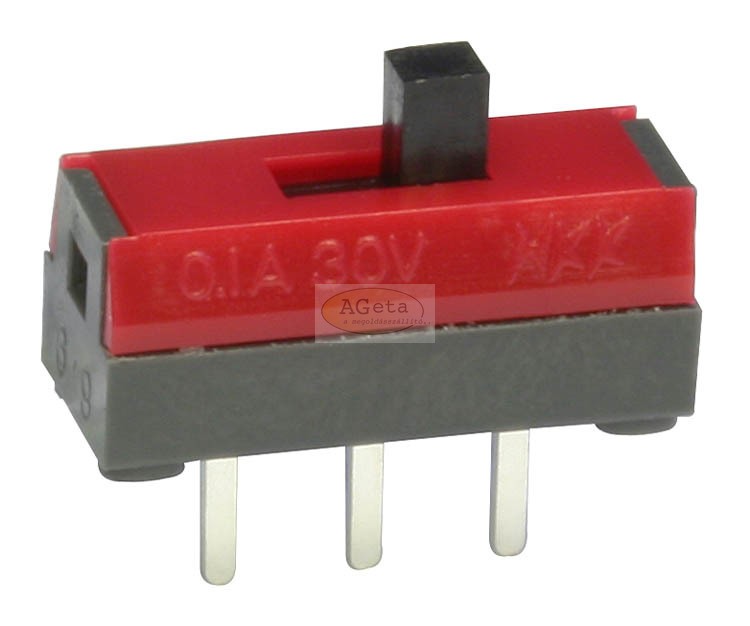

subminiature slide switches up to 100 mA 30 V
- small-sized design
- overlapping contact system
- terminal side sealed against fluxes and solder vapours
| Specification: | |
|---|---|
| Switching capacity: | 100 mA 30 V |
| Mechanical operating life: | 1E4 |
| Contact resistance: | < 30 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 500 V |
| Temperature range: | -25°C up to +85°C |
| Actuator: | PA |
| Housing: | PA / fibre-glass reinforced PA |
| Terminals: | silver plated |
| Contacts: | silver plated |
| Item: | Switching function: | Slider: |
|---|---|---|
| MQ90780101 | single pole double throw | at the top |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
