toggle switches up to 10 A 250 VAC
- suitable as voltage selector switch (for currentless switching)
- sunken slide for protection against accidental actuation
- simple assembly with screws
| Specification: | |
|---|---|
| Switching capacity: | 10 A 250 VAC |
| Mechanical operating life: | 1E4 |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Resistance to tracking: | PTI 250 |
| Protection class: | IP 40 |
| Temperature range: | -20°C up to +85°C |
| (terminal side) | |
| -20°C up to +55°C | |
| (actuating side) | |
| Flammability: | UL 94 V-2 |
| Heat resistant: | up to +850°C |
| Contact gap: | ≥ 3 mm |
| Actuator: | PA |
| Housing: | Hard paper PA |
| glass fi ber-reinforced PA | |
| Terminals: | silver plated / chromated |
| Contacts: | silver |
| Approval marks: | ENEC, UL, CSA |
| Item: | Switching function: | Connection: | Colour: |
|---|---|---|---|

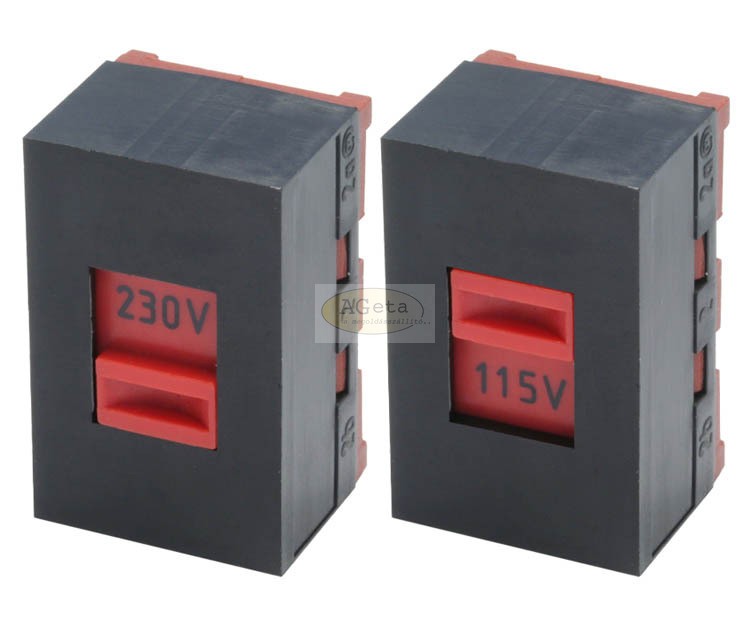

| MQ40214620 | double throw 230V / 115 V | PCB terminal | black |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
