double pole rocker switches up to 20 (4) A 250 VAC
- IP 65 with integrated seal for dust and splash water proofing
- suitable for appliances of protection class II
| Specification: | |
|---|---|
| Mechanical operating life: | 5E4 |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 1500 V |
| Resistance to tracking: | PTI 250 |
| Protection class: | IP 65 (sunk mounting) |
| Temperature range: | -30°C up to +105°C |
| (terminal side) | |
| -30°C up to +55°C | |
| (actuating side) | |
| Heat resistant: | up to +850°C (category D) |
| Contact gap: | ≥ 3 mm |
| Termination: | quick-connect terminal 6.3 mm |
| Actuator: | PC |
| Gaiter: | TPE |
| Housing: | PA |
| Terminals: | silver plated |
| Contacts: | silver |
| Approval marks: | ENEC, cCSAus |
| Item: | Switching function: | Version: | Switching capacity: |
|---|---|---|---|

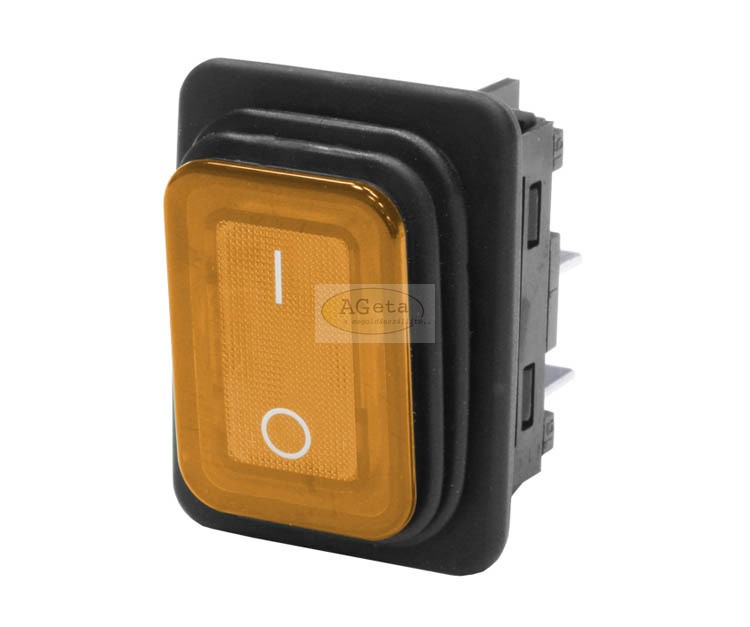

| MQ19353114 | double pole single throw | black, orange illuminated | 20 (4) A 250 VAC |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
