rocker switches up to 16 (4) A 250 V
- excellent actuation characteristic
- suitable for appliances of protection class II
| Specification: | |
|---|---|
| Switching capacity: | 16 (4) A 250 VAC |
| Mechanical operating life: | 1000000 cycles |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 1500 V |
| Resistance to tracking: | PTI 250 |
| Protection class: | IP 67 |
| Temperature range: | -20°C up to +105°C (terminal side) |
| -20°C up to +55°C (actuating side) | |
| Flammability: | UL 94 V-2 |
| Heat resistant: | up to +850°C (category D) |
| Contact gap: | ≥ 3 mm |
| Actuator: | PA |
| Housing: | PA |
| Terminals: | silver plated |
| Contacts: | silver |
| Approval marks: | ENEC, UL, CSA |
| Item: | Switching function: | Version: | Terminal: |
|---|---|---|---|

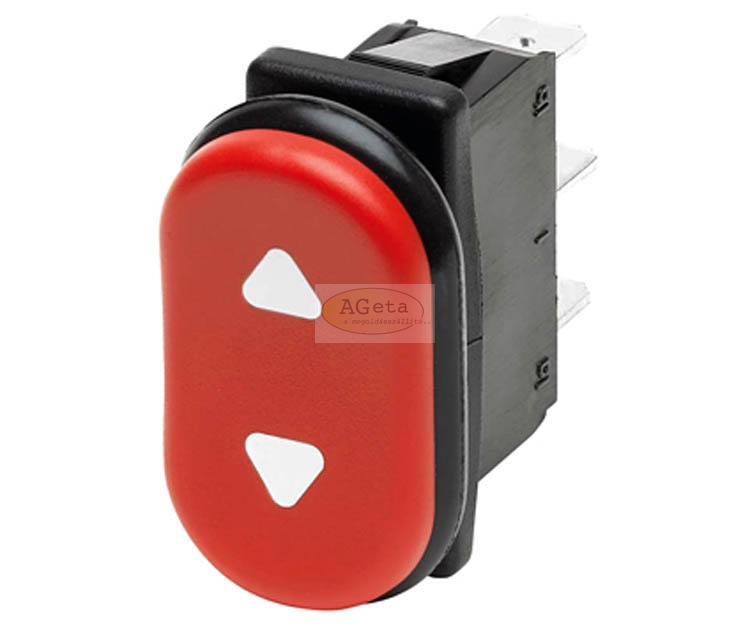

| MQ18383901 | single pole double throw - center OFF | red, marking < > | quick-connect terminal 6.3 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
