single pole switch up to 2 (1) A 250 VAC
- small, compact pushbutton switch
- special design for dust and water protection
| Specification: | |
|---|---|
| Switching capacity: | 2 (1) A 250 VAC |
| Mechanical operating life: | 50E4 |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Resistance to tracking: | PTI 250 |
| Temperature range: | -20°C up to +85°C |
| (terminal side) | |
| -20°C up to +55°C | |
| (actuating side) | |
| Flammability: | UL 94 V-2 |
| Heat resistant: | up to +850°C |
| Contact gap: | ≥ 3 mm |
| Actuator: | PA |
| Housing: | PA |
| Terminals: | silver plated / tinned |
| Contacts: | silver |
| Approval marks: | ENEC |
| Item: | Switching function: | Actuator: | Connection: |
|---|---|---|---|

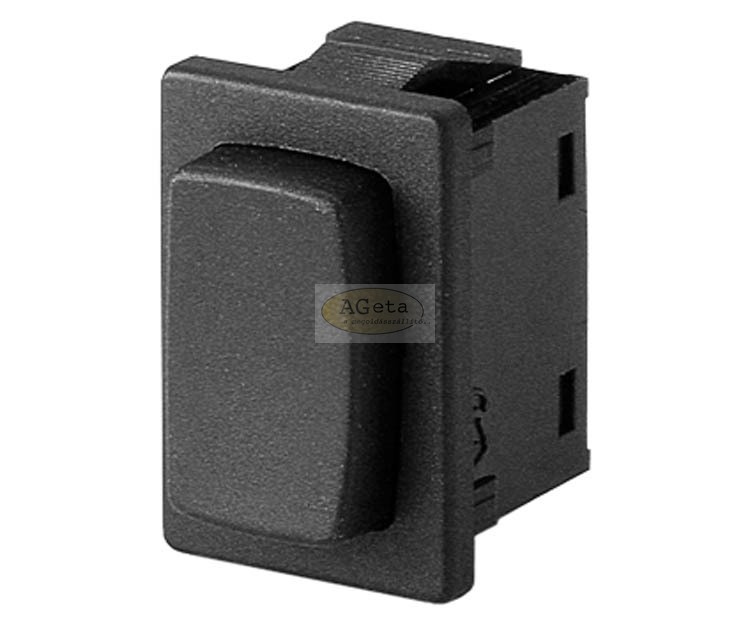

| MQ18463201 | normally open | black | quick-connect terminal 2.8 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
