Illuminated and non-illuminated pushbutton switch up to 16 (4) A 250 VAC
- proven jump contact switching system(double interrupting)
- opening and closing speed independent of the actuating speed
- product-dependent with external lamp connection
*The approval mark applies to all products from the series except the article MQ16630101!
| Specification: | |
|---|---|
| Switching capacity: | 16 (4) A 250 VAC |
| Contact resistance: | < 100 mΩ |
| Insulation resistance: | > 100 MΩ |
| Withstand voltage: | 1500 V |
| Resistance to tracking: | PTI 250 |
| Temperature range: | -20°C up to +85°C (terminal side) |
| -20°C up to +55°C (actuating side) | |
| Flammability: | UL 94 V-2 |
| Heat resistant: | up to +850°C (category D) |
| Contact gap: | ≥ 3 mm |
| Actuator: | PA / PC (product-dependent ) |
| Housing: | PA / fibre-glass reinforced PA |
| Terminals: | cooper |
| Contacts: | silver |
| Approval marks: | ENEC* |
| Item: | Switching function: | Actuator: | Terminal |
|---|---|---|---|

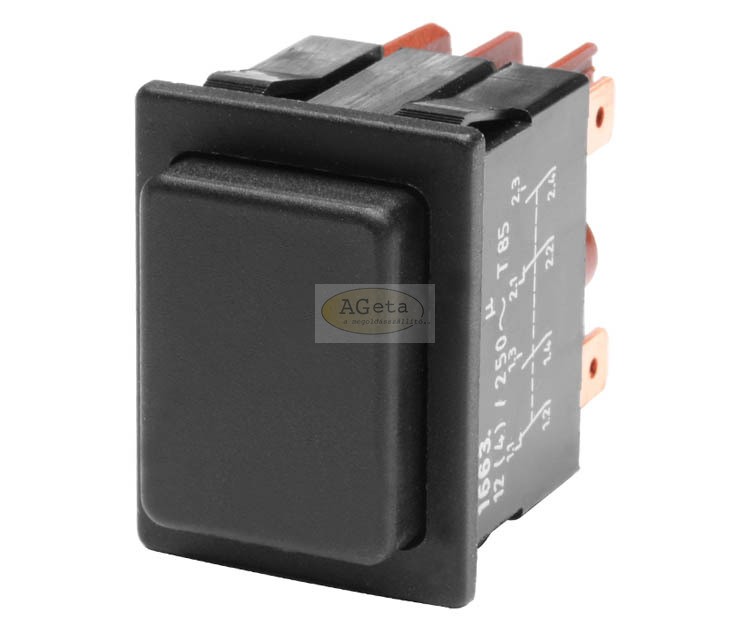

| MQ16630101 | double throw | PA, black | quick-connect terminal 4.8 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MARQUARDT |
