| Specification: | |
|---|---|
| Contacts | |
| Contact arrangement: | 2 double throw |
| Contact direction: | straight |
| max. Switching voltage: | 125 Vac / 125 Vdc |
| max. Switching current: | 2 A |
| max. Switching capacity: | 67.5 VA / 60 W |
| Material: | Silver, gold plated |
| General information | |
| Ansprechspannung / | |
| Abfallspannung: | |
| 5 Vdc: | 3.75 V / 0.25 V |
| 12 Vdc: | 5 V / 0.6 V |
| 24 Vdc: | 18 V / 1.2 V |
| Operate time: | 7 ms |
| Release time: | 3 ms |
| Withstand voltage: | 1000 Vac for 1 min. |
| Temperature range: | -25°C up to +65°C |
| Approvals: | UL, CSA, RU |
| Dimensions: | 20.5 x 10.1 x 11.5 mm |
| Item: | Nominal | max. operating | Current | Power | Coil |
|---|---|---|---|---|---|
| voltage: | voltage: | rating: | rating: | resistance: | |

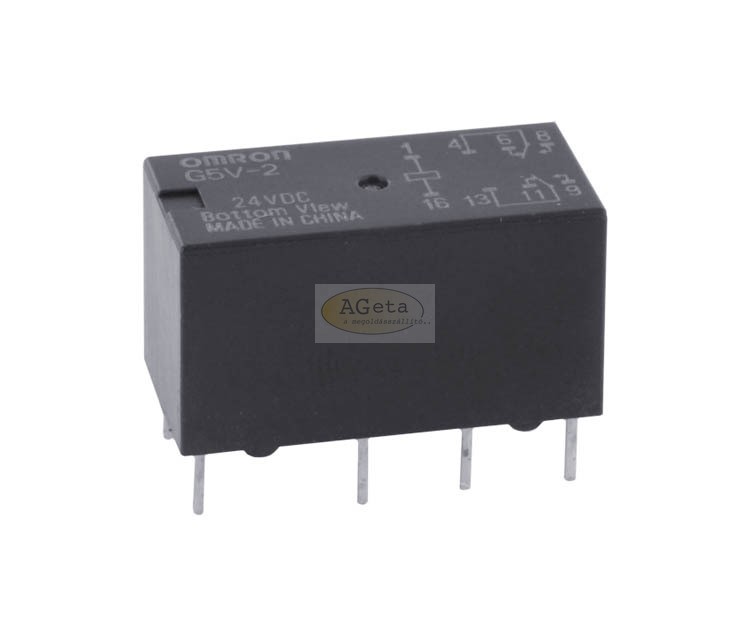

| G5V25VDC | 5 Vdc | 6 V | 100 mA | 500 mW | 50 W |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | OMRON |
