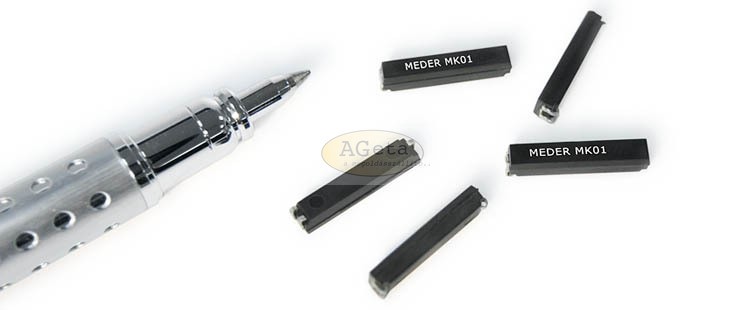

The MK01 sensor offers a selection of magnetically operated Reed proximity switches with J-lead connections for SMD mounting
- extremely low profile packaging with a component height of only 3.25mm
- The magnetic pull-in and drop-out sensitivity is divided into four AT ranges
- Flux thickly
| Specification: | |
|---|---|
| Switching capacity: | 10 W |
| Voltage max.: | 200 VDC |
| Switching current max.: | 0.5 A |
| Breakdown voltage min: | 250 VDC |
| Pull-in energization: | 10 - 15 AW |
| Contact resistance: | 150 mΩ max. |
| Ambient temperature: | -20...+130°C |
| Minimum order quantity = 2000 pcs! |
| Item: | Standard range: | MEDER item: |
|---|---|---|
| MK01B | 10 - 30 AW | MK01-B |
További információk
| Minimálisan rendelhető mennyiség | 2000.0000 |
|---|---|
| Gyártó | Standex-Meder Electronics |
