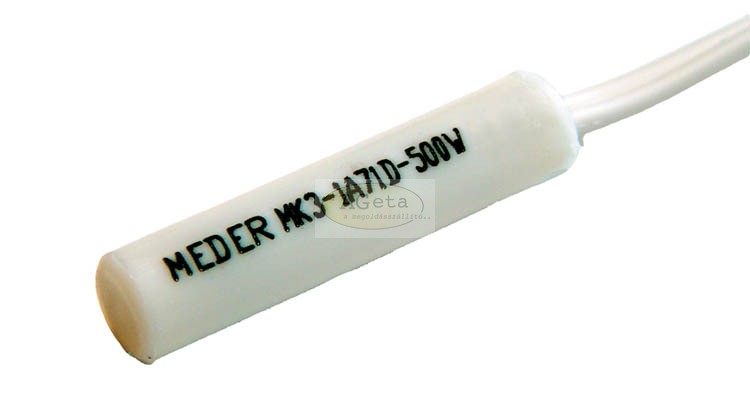

Magnetically actuated Reed proximity switches, cylindrical design with connection cable
Applications:
- position and end switches
- door and window contacts
- level switches
| general Specification: | |
|---|---|
| Contact resistance: | 150 mΩ max. |
| Pull-in energization: | 15 - 20 AW |
| Item: | Description: | Switching | Switching | Switching current: | Carry | Breakdown |
|---|---|---|---|---|---|---|
| Power: | Voltage: | Current: | Voltage: | |||
| MK3/1A66C | normally open | 10 W max. | 200 V max. | 0.5 A max. | 1.0 A max. | 250 V max. |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Standex-Meder Electronics |
