Részletek
- cable heads approx. 5.0 mm stripped and tinned
- cable length 50.0 cm
- made from polypropylene
| Specification: | |
|---|---|
| Switching capacity: | 10 W |
| Switching voltage: | 200 VDC |
| Switching current: | 0.5 A |
| Carry current: | 1.0 A |
| Static contact resistance: | 150 mΩ |
| Breakdown voltage: | 200 VDC |
| Contact resistance: | 200 mΩ |
| Item: | Description: | Floater at the bottom: | Floater at the top: |
|---|---|---|---|

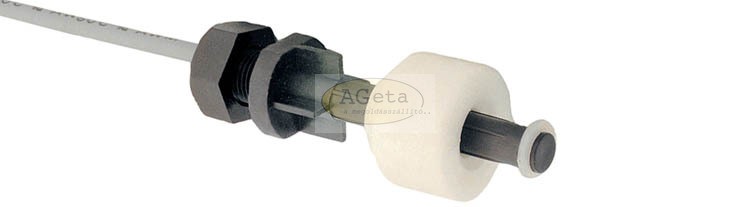

| LS02/1B71PP | normally closed | Contact open | Contact closed |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Standex-Meder Electronics |
