- screw terminal socket with integrated snap-in mounting for timer, coil indication and EMC suppression modules
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 77.5 x 38.0 x 33.5 mm |
| Rated values: | 10 A / 250 V |
| Withstand voltage: | 2 kV |
| Protection class: | IP 20 |
| Ambient temperature: | -40°C up to +70°C |
| Torque: | 0.6 Nm |
| Strip length: | 10 mm |
| max. Terminal diameter: | 1 x 6.0 mm² / 2 x 2.5 mm² (solid wire) |
| 1 x 4.0 mm² / 2 x 2.5 mm² (stranded wire) | |
| equates AWG: | 1 x 10 / 2 x 14 (solid wire) |
| 1 x 12 / 2 x 14 (stranded wire) | |
| Approvals: | CE, CSA, GOST, IMQ, cRUus, VDE |
| Item: | Description: |
|---|---|

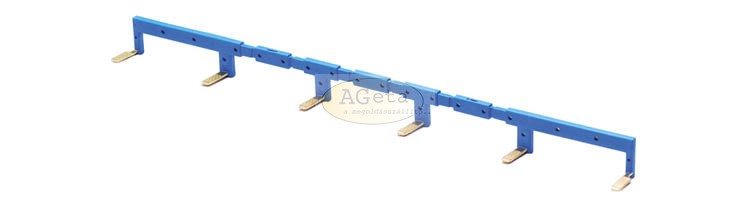

| F09006 | jumper link to connect the A1- or A2-terminals of up to 6 sockets |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | finder |
