Részletek
- contact and coil terminals at opposite sides
- integrated snap-in mounting for coil indication and EMC suppression modules
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 76.2 x 27.0 x 64.8 mm |
| Rated values: | 10 A / 250 V |
| Withstand voltage: | 2 kVac |
| Protection class: | IP 20 |
| Ambient temperature: | -40°C up to +70°C |
| Strip length: | 8 mm |
| Torque: | 0.5 Nm |
| max. Terminal diameter: | 1 x 6.0 mm² / 2 x 2.5 mm² (solid wire) |
| 1 x 4.0 mm² / 2 x 2.5 mm² (stranded wire) | |
| equates AWG: | 1 x 10 / 2 x 14 (solid wire) |
| 1 x 12 / 2 x 14 (stranded wire) | |
| Approvals: | CE, GOST, cRUus |
| Item: | Description: |
|---|---|

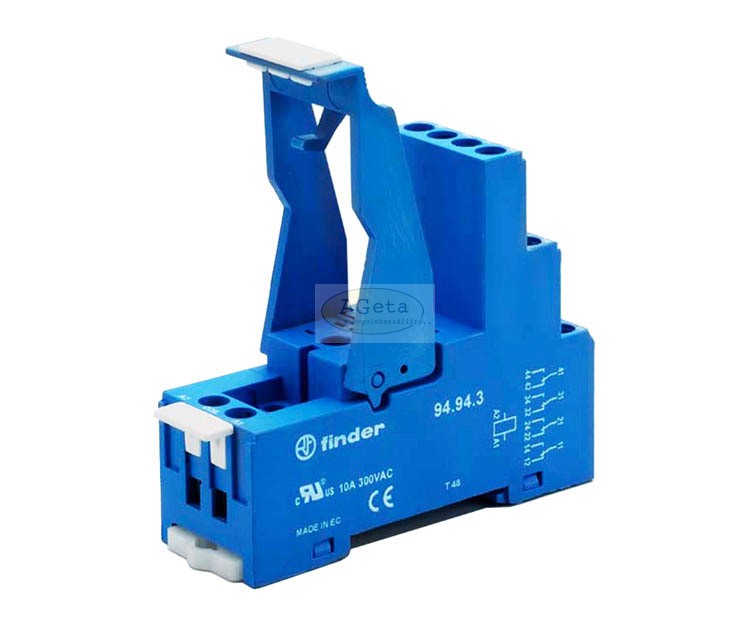

| F94943 | screw terminal socket for relay 5532 and 5534 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | finder |
