- integrated snap fit für coil indication and EMC suppression modules
Coil indication and sppression modules as well as other accessories available on demand!
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 81.9 x 15.5 x 46.8 |
| Rated values: | 10 A / 250 V |
| Withstand voltage: | 6 kV |
| Protection class: | IP 20 |
| Ambient temperature: | -40°C up to +70°C |
| Strip length: | 8 mm |
| Torque: | 0.5 Nm |
| max. Terminal diameter: | 1 x 6.0 mm² / 2 x 2.5 mm² (solid wire) |
| 1 x 4.0 mm² / 2 x 2.5 mm² (stranded wire) | |
| equates AWG: | 1 x 10 / 2 x 14 (solid wire) |
| 1 x 12 / 2 x 14 (stranded wire) | |
| Approvals: | CE, GOST, cULus |
| Item: | Description: |
|---|---|

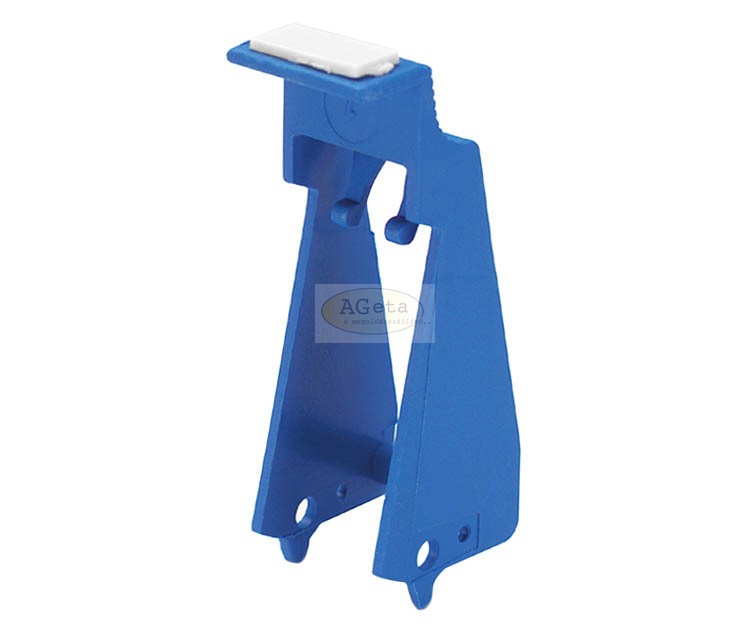

| F95913 | Variclip (plastic), retaining and release clip for F95833 and F95853 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | finder |
