Részletek
- multi-function timer relays
- multi-voltage 12 up to 240 V AC/DC
- ON delay
- ON pulse
- symmetrical recycling: ON start
- signal OFF delay
- signal ON and OFF delay
- Signal ON pulse
- the control contact B1 can be with external voltage between 12- and 240 V AC/DC assigned
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 84.0 x 17.5 x 56.5 mm |
| max. Switching capacity AC1: | 4000 VA |
| max. Switching voltage: | 400 Vac |
| max. Switching capacity AC15: | 750 VA (230Vac) |
| Nominal Power AC/DC: | 1.8 VA (at 50 Hz) / 1.0 W |
| Temperature range: | -10°C up to +50°C |
| Protection class: | IP 20 |
| Approvals: | CE, GOST, cULus |
| Item: | Contact arrangement: |
|---|---|

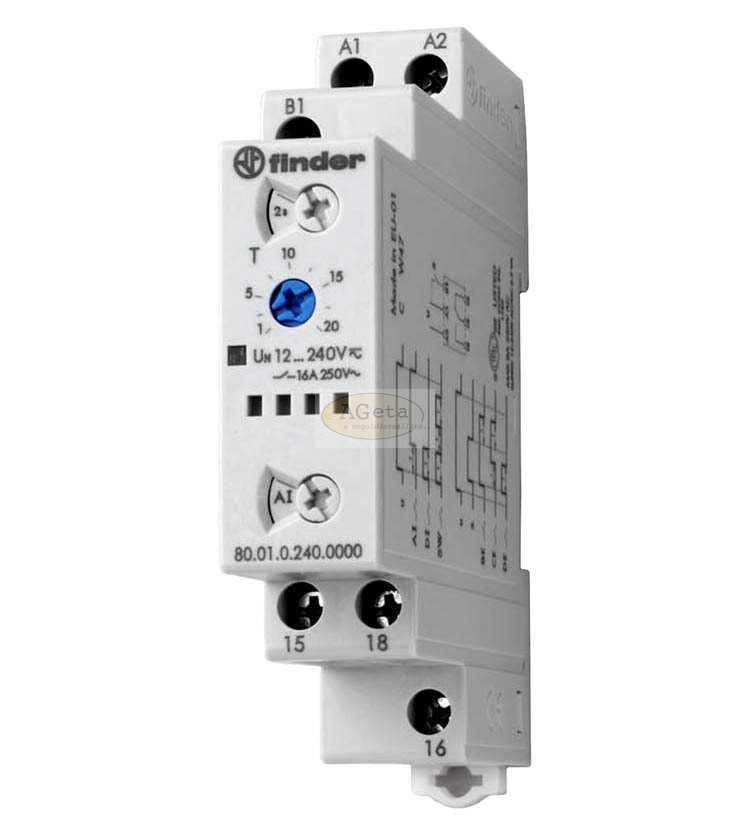

| ZR8001 | 1 Form C |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | finder |
