Részletek
- 17.5 mm wide
- time setting from 30 s to 20 min
- zero crossing load switching
- suitable for 3 or 4 wire systems, with automatic recognition
- LED status indicators
- can be used with illuminated push - buttons
- "Blade + cross" - both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35 mm rail mounting clip
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 84.0 x 17.5 x 60.8 mm |
| Contacts | |
| Contact configuration: | 1 Form A |
| max. Continuous current: | 16 A |
| max. Peak current: | 30 A (120 A for 5 ms) |
| Voltage rating: | 230 Vac |
| Contact material: | AgSnO2 |
| maximum rated values | |
| Incandescent: | 3000 W (230 Vac) |
| Fluorescent: | 1000 V (230 Vac) |
| Halogen: | 3000 W (230 Vac) |
| Coil | |
| Voltage rating: | 230 Vac, 50/60 Hz |
| Nominal power AC/DC: | 3 VA (50 Hz) / 1.2 W |
| Operating voltage: | 0.8 up to 1.1 UN |
| General information | |
| Temperature range: | -10°C up to +60°C |
| Protection class: | IP 20 |
| Approvals: | CE, GOST, IMQ, NF |
| Item: | Description: | Terminals: |
|---|---|---|

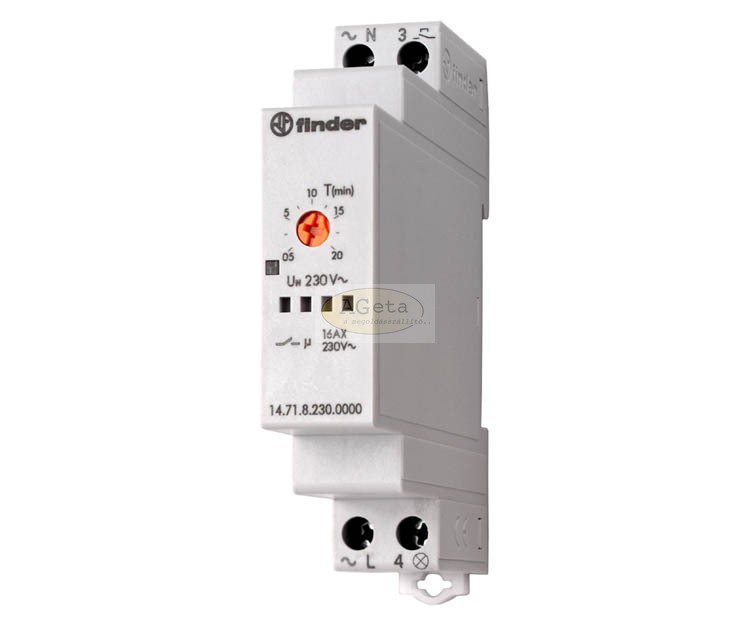

| 1471/230 | Mono-function | Actuation and Output on opposite sides |
