- for high industrial demands
- width 17.5 mm
- multi voltage (24 to 240) VAC / (24 to 48) VDC
- the multi-pupose relay features 4 timer modes
- 6 intervals of up to 10 h
- for 35 mm rail (EN 50022)
Timer modes:
- response delay
- raising wiper
- indicator, starting with pulse
- relapsing delay
| Specification: | |
|---|---|
| Dimensions (LxWxH): | 80.0 x 17.5 x 70.0 mm |
| Contacts | |
| Contact arrangement: | single pole double throw |
| max. Continuous current: | 5 A |
| max. Peak current: | 20 A |
| Voltage rating: | 250 VAC |
| max. Switching voltage: | 400 VAC |
| Supply | |
| Nominal Power AC/DC: | 5 VA (at 50 Hz) / 0.5 W |
| Operating voltage AC: | 0.85 up to 1.1 UN |
| Operating voltage DC: | 0.85 up to 1.2 UN |
| General information | |
| Intervals: | (0.05 ... 1) s, (0.5 ... 10) s, (0.05 ...1) min, |
| (0.5 ... 10) min, (0.05 ... 1) h, (0.5 ... 10) h | |
| electrical Operating life AC1: | 100000 operations |
| Ambient temperature: | -20°C up to +50°C |
| Protection class: | IP 20 |
| Approvals: | CE, cULus, GL, GOST |
| Item: | Description: | Function: |
|---|---|---|

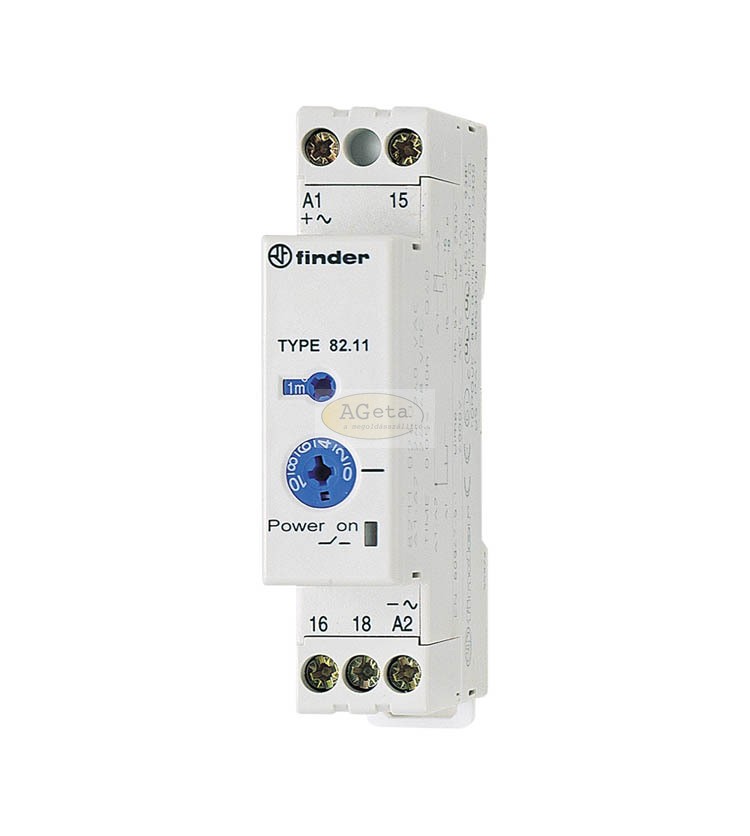

| ZR8211 | single-purpose relay | response delay |
