Részletek

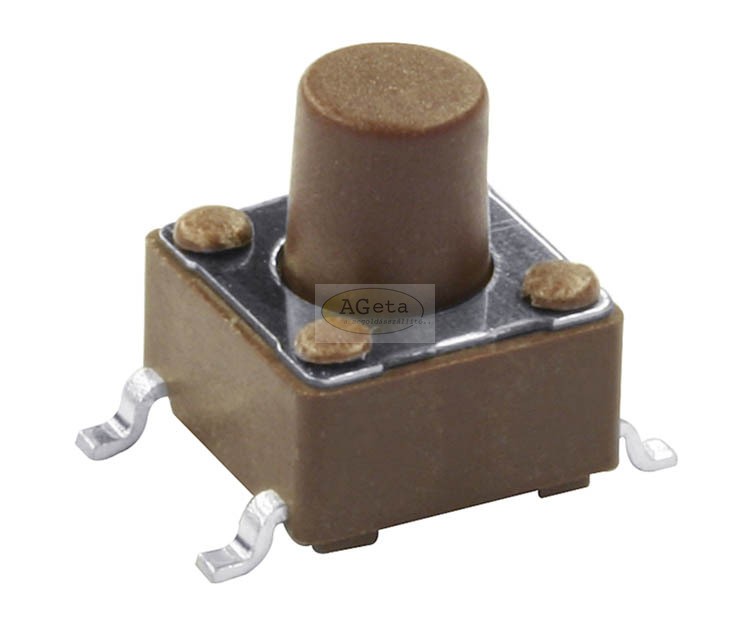

- single pole input key with an SPST-NO contact
- very small dimensions
Applications:- data and signal technology
- measuring and controlling
- membrane keyboards
Specification: Switching voltage: max. 12 VDC Switching current: max. 50 mA Withstand voltage, 1 min.: 250 VAC Operating life: 200000 operations with switching capacity Contact resistance: max. 100 mΩ Insulation resistance: min. 100 MΩ / 500 VDC Switching type: 1 NO contact Operation force: 1.6 N Operation path: 0.25 mm+0,2-0,1 Insulation material: thermoplastic nylon, UL 94 V-0 Contact plating: bronze silver plated Soldering heat: max. 255°C for 5 s Temperature range: -25°C up to +70°C Packing unit: 100 pcs Minimum order quantity: 25 pcs Item: Description: H: DTSM63N horizontal 7.0 mm
További információk
| Minimálisan rendelhető mennyiség | 25.0000 |
|---|---|
| Gyártó | Diptronics |
