Részletek

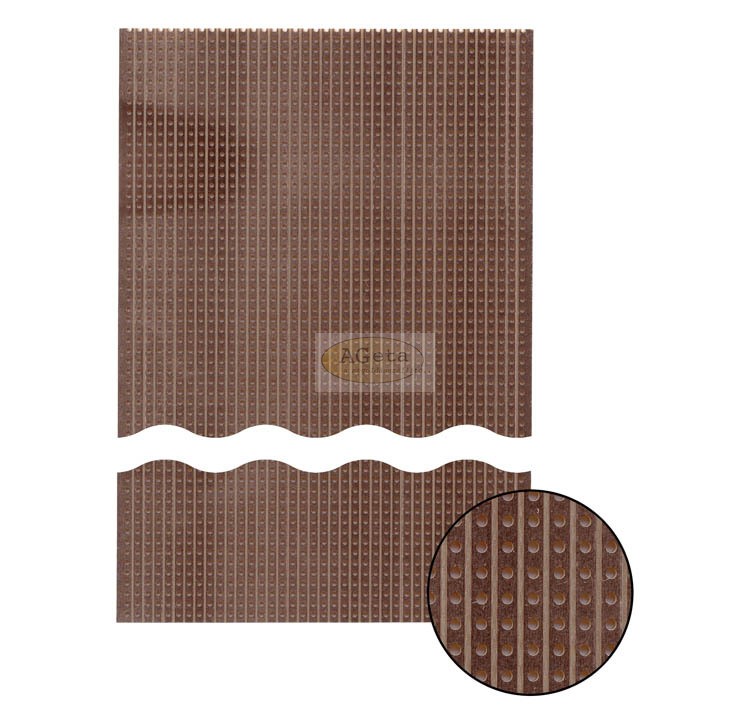

- experimental boards with different lengths
- uniform width of 100 mm
- made from hard paper with Cu plating on one side
- etched stripes of pitch 2.5 mm, cutable by a knife at desired spots
| Specification: | |
|---|---|
| Pitch: | 2.5 mm |
| Rows of holes: | 39 |
| Punch holes: | 1.0 mm |
| Cu plating: | 35 ľ |
| Material thickness: | 1.5 mm |
| Dimensions (mm) |
| Item: | Length: | Width: |
|---|---|---|
| SRM160 | 160 | 100 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Rademacher |
