Characteristics:
- high thermal conductivity
- fibre glas reinforcing ensures mechanical stability
- very flexible
- no heat-conductive paste required
- non-combustible according to UL 94 V-0
Packing unit = 1 PU = 100 pcs
Please order the desired no. of PUs.
| Specification: | |
|---|---|
| Material: | silicone with fibre glas reinforcing |
| Filling: | heat conductive ceramic |
| Material thickness (±0,05): | 0.3 mm |
| Dielectric voltage 1: | 7000 V AC |
| Flammability: | UL 94 V-0 |
| Thermal conductance: | 1.5 W/mK |
| Thermal resistance 2: | 0.45°C/W |
| Operating temperature: | -60°C up to +200°C |
| 1 Voltage ramp 1000V/s | |
| 2 at approx. 1.3 MPa | |
| Dimensions (mm): |
| Item: | for Housing: |
|---|---|

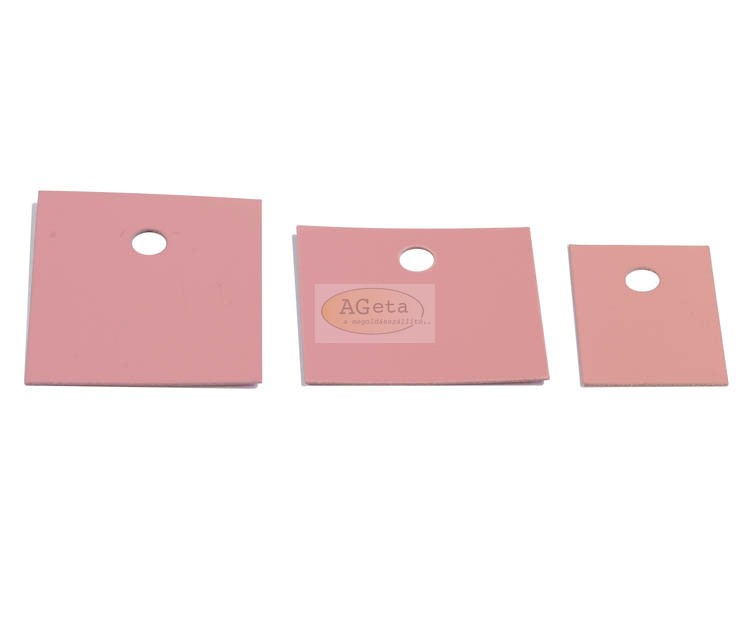

| SI03GF-TOP3 | TOP3 |
