Részletek
- good surface contact, as material is flexible
- reduced production costs as a matter of mounting without thermal conducting paste
- spring-back of the elastic material protects the transistor against damage
- free of toxic substances
| Material thickness: | 0.3 mm |
| Material hardness: | 75 Shore A |
| Breakdown voltage: | 10 kV |
| Thermal resistance: | 0.4 K/W |
| Insulation resistance: | 2,9 x 1015 Ω cm |
| Thermal conductivity: | 1.22 |
| Extensibility: | 100% |
| Temperature range: | -60°C up to +180°C |
| Inflammability class: | UL 94 V-0 |
| Item: | for Housing: | Dimensions: | Length: |
|---|---|---|---|

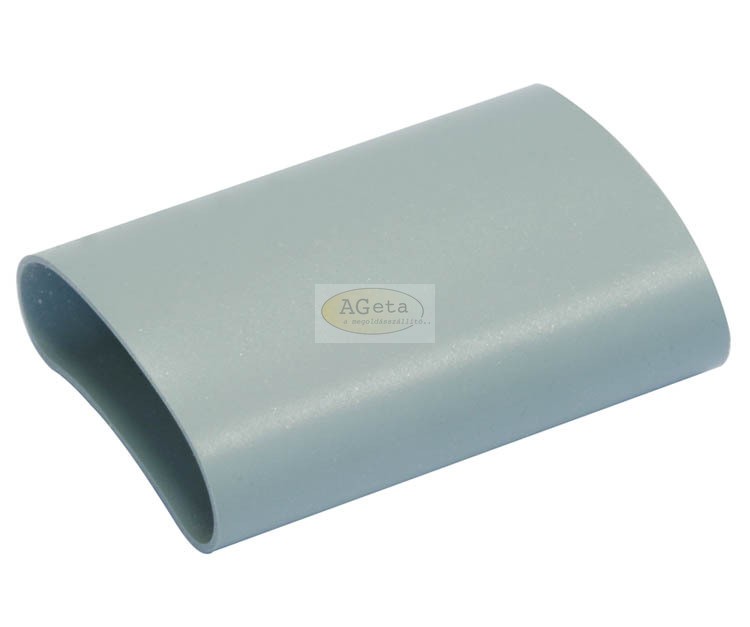

| WSC220 | TO 220 | Ø 11 mm | 25 mm |
