PLuft = airflow, ± 10 %
Pel= power consumption, ± 15%
| Specification: | |
|---|---|
| Termination: | Strands AWG24, stripped, tin plated |
| Voltage rating: | 24 V DC |
| Withstand voltage | |
| at 65% r.F.: | 500 V AC for 1 min. |
| Insulation resistance | |
| at 500 V DC: | 10 MΩ |
| Insulation class (100 °C): | A |
| Storage temperature: | -40 ... +70°C |
| Operating temperature: | -10 ... +70°C |
| Dimensions (mm): |
| Item: | Bearing: | Voltage: | PLuft: | Noise: | I: | P el: | Speed: |
|---|---|---|---|---|---|---|---|

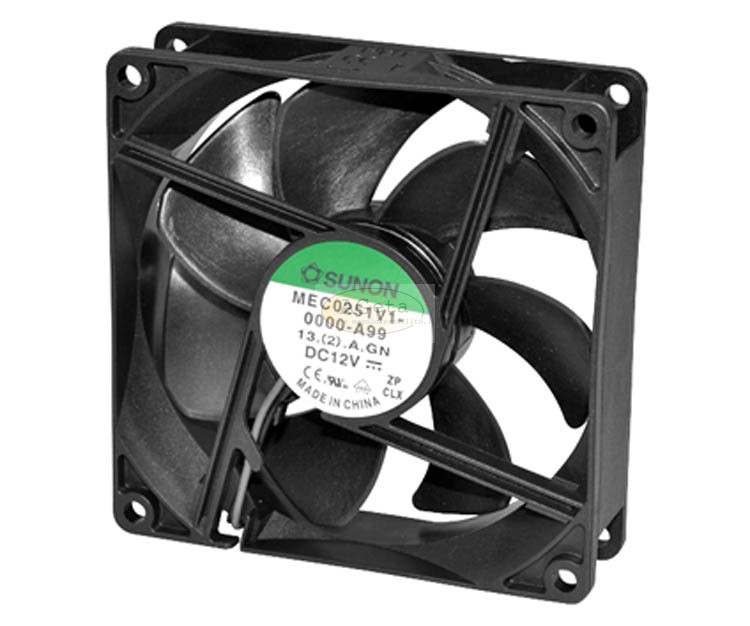

| EEC0252B1A99 | Ball | 6.0 ... 27.6 V DC | 183.79 m3/h | 44.5 dBA | 0.21 A | 5.0 W | 3100 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | SUNON |
