Részletek
all data is valid for 230 V, 50Hz
PLuft = airflow, ± 10 %
Pel= power consumption, ± 10%
| Specification: | |
|---|---|
| Termination: | integrated blade terminal (2.8 x 0.5mm) |
| Voltage rating: | 50 Hz: 220V |
| 60 Hz: 240V | |
| Operating voltage: | 185...245V |
| Withstand voltage | |
| at 65% r.F.: | 1500 V AC for 1 min. |
| Insulation resistance | |
| at 500 V DC: | > 500 MΩ |
| Insulation class (120 °C): | B |
| Storage temperature: | -40 ... +70°C |
| Operating temperature: | -10 ... +70°C |
| Dimensions (mm): |
| Item: | Bearing: | PLuft: | Noise: | I: | Pel: | Speed: |
|---|---|---|---|---|---|---|

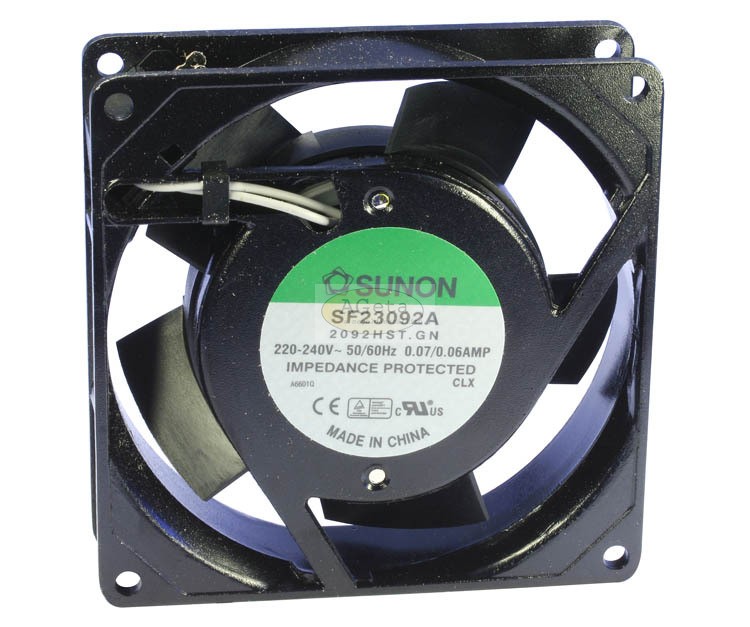

| LA92 | Sleeve | 49.26 m3/h | 36.0 dBA | 0.07 A | 14.5 W | 2250 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | SUNON |
