Részletek
| Specification: | |
|---|---|
| Operation: | overarm |
| Switching capacity: | 50 VDC / 100 mA standby |
| 24 VDC / 25 mA on-load | |
| Contact resistance: | 30 mΩ at 100 mA |
| Operating life: | 5000 switching operations |
| Insulation resistance: | 1000 MΩ at 500 VDC |
| Capacitance: | max. 5 pF between adjacent |
| contacts | |
| Withstand voltage: | min. 500 VDC |
| Temperature range: | -40°C up to +70°C |
| Contact material: | phosphor bronze as base |
| gold over nickel | |
| Housing material: | PBT plus fibreglass according to UL 94 V-O |
| Pitch: | 2.54 / 7.62 |
| Dimensions (mm) |
| Item: | Switch: | A: | Packing: |
|---|---|---|---|

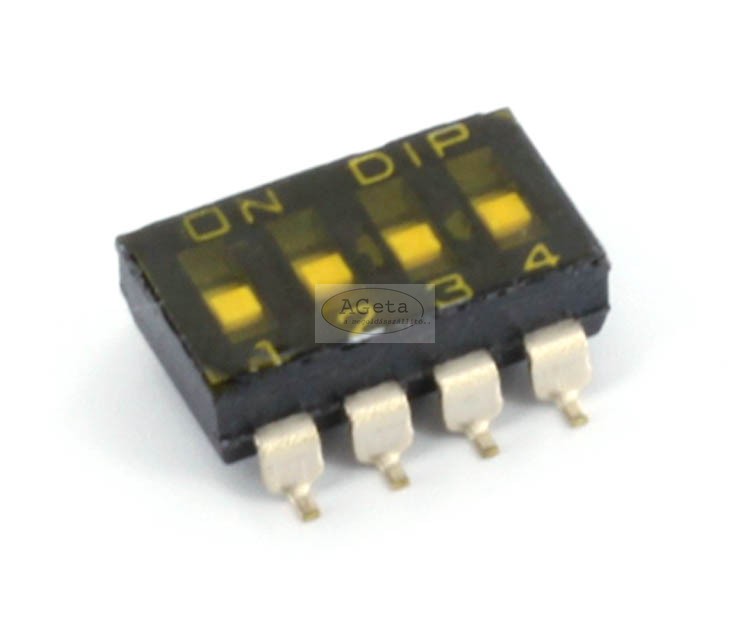

| DIP04SMD | 4 | 10.90 | bulk |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | N/A |
