Részletek
| Techniche Daten: | |
|---|---|
| Operation: | overarm |
| Switching capacity: | 50 VDC / 100 mA standby |
| 24 VDC / 25 mA on-load | |
| Contact resistance: | max. 100 mΩ |
| Operating life: | 1000 switching operations per Switch |
| Insulation resistance: | min. 100 MΩ at 500 VDC |
| Capacitance: | max. 5 pF between adjacent |
| contacts | |
| Dielectric strength: | 300 VAC / 1 Minute |
| Temperature range: | -40°C up to +85°C |
| Contact material: | Copper alloy as base |
| gold over nickel | |
| Housing material: | nylon Thermoplastic, UL 94 V-0 |
| Pitch: | 1.27 |
| Dimensions (mm) |
| Item: | Switch: | A: | Packing: |
|---|---|---|---|

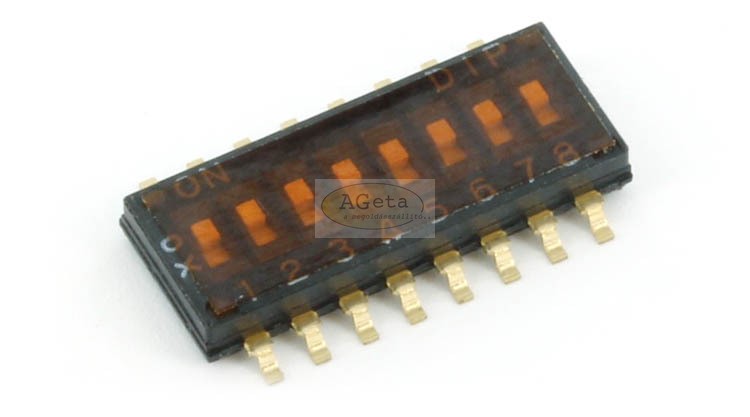

| DIP08S1 | 8 | 11.39 | bulk |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | N/A |
