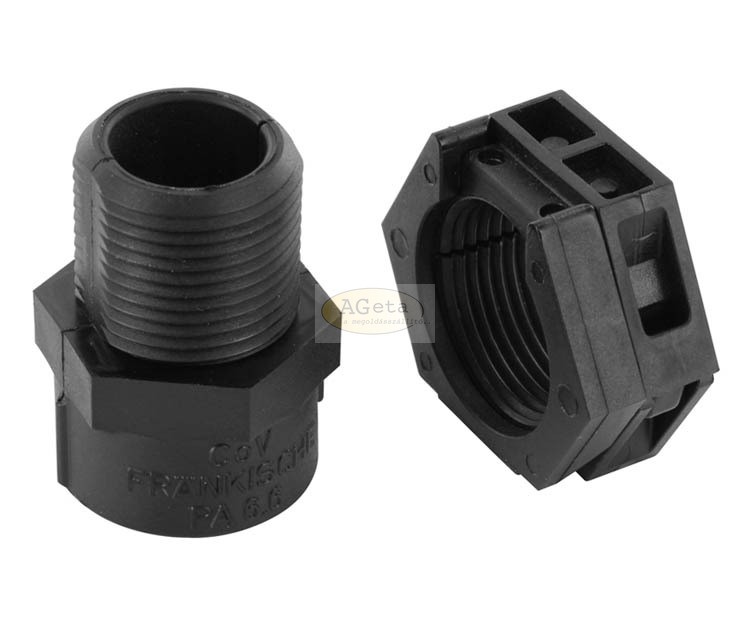

Screw connection made from PA 6
- for quick and easy mounting of Co-flex corrugated tubes
- suitable for subsequent installation
All prices are per piece.
minimum order quantity = 10 pcs!
| Specification: | |
|---|---|
| Material: | polyamide 6 |
| Thermal resistance: | -40°C up to +120°C, temporary up to +150°C |
| Flammability: | UL 94: HB |
| Protection class: | IP 43 |
| Dimensions (mm) |
| Item: | for tube: | Thread: | Body: | Nut: | A: | B: | C: | D: |
|---|---|---|---|---|---|---|---|---|
| COV23 | CO23PP | PG 29 | SW 41 | SW 46 | 42.0 | 21.0 | 17.0 | 24.0 |
További információk
| Minimálisan rendelhető mennyiség | 10.0000 |
|---|---|
| Gyártó | FRÄNKISCHE Rohrwerke |
