Inline amplifiers for satellite signals
- SVS2-02 and 2-04 wideband type, for use at a multiswitch output
- digital-compatible
- 22 kHz-compatible
- waterproof die cast housing
- power supply of the amplifier is done via the coax. cable
- according to EN 50083-2, class A
Detailed datasheets are available on request!
| Specification: | SVS2-00 | SVS2-01 | SVS2-02 | SVS2-04 |
|---|---|---|---|---|
| Frequency range terr./SAT: | -/950 up to 2400 MHz | -/950 up to 2400 MHz | 47 up to 2400 MHz | 47 up to 2400 MHz |
| Amplification terr./SAT: | -/16 up to 23 dB | -/20 dB | 14 up to 20 dB | 10 dB |
| Equalization terr./SAT: | -/3 dB | - | 6 dB | - |
| Noise figure: | 7 dB | 7 dB | 7 dB | 7 dB |
| Item: | Version: |
|---|---|

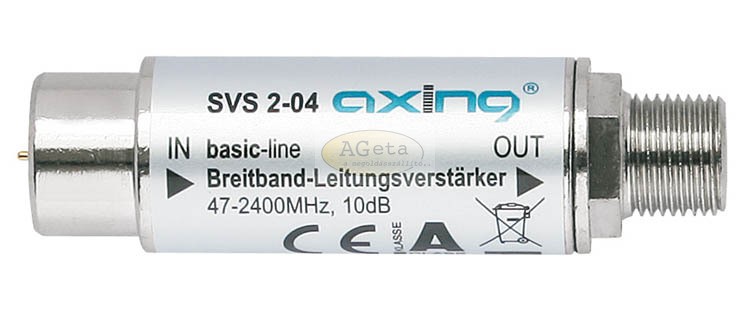

| SVS2-04 | without slope control |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | AXING |
