Részletek

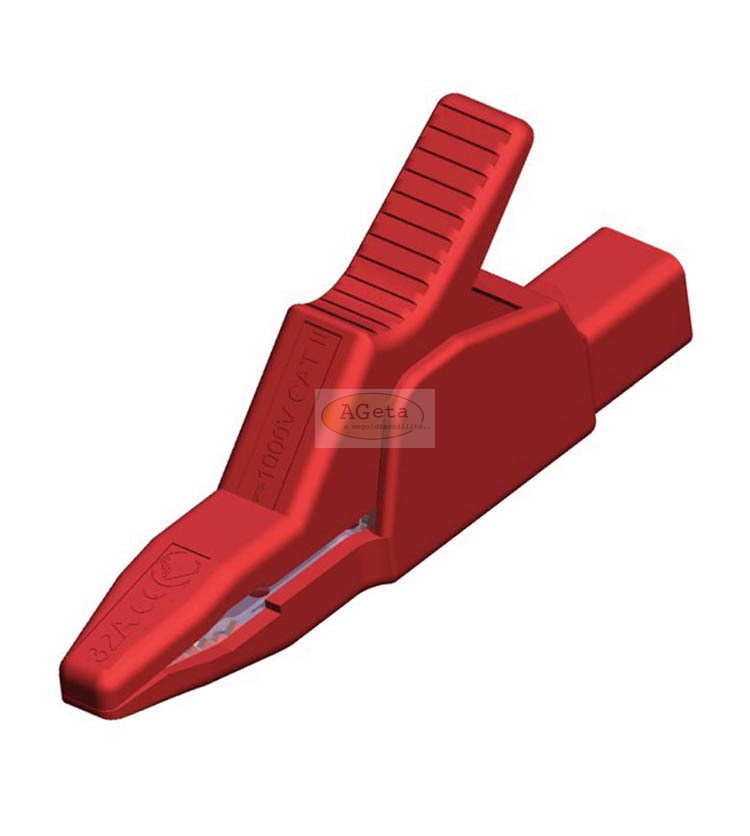

Contact-protected, unbreakable, wide-opening crocodile clip. Clamping range up to a bolt diameter of 30 mm. Solid wire clip, U-shaped, fine wire face; 4 mm diameter brass socket connection, suitable for use with safety-type measuring leads.
| Specification: | |
|---|---|
| Operating voltage: | 1000 V |
| Overvoltage category: | 2 |
| Pollution severity: | 2 |
| Working current: | 34 A |
| Contact resistance: | 10 mΩ max. |
| Temperature range: | -30°C up to +90°C |
| Termination: | 4 mm jack |
| Clamping range: | Ø 30 mm |
| Item: | Type: | Colour: |
|---|---|---|
| 972405101 | AK 2 B 2540 | red |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | HIRSCHMANN Test & Measurement a Brand of SKS |
