Részletek

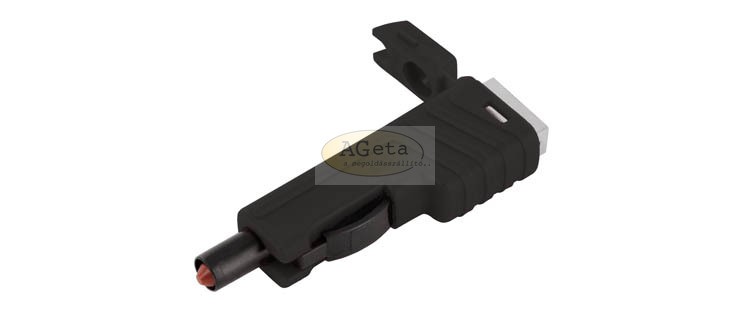

Banana plug, touch-protected, with capability of further connection, with solder connection for cross-sections up to 2.5 mm², insulated by latching and sprung insulated sleeve which is only released by pressure on the side-mounted locking spring. 4 mm diameter.
| Specification: | |
|---|---|
| Operating voltage: | 60 V DC |
| Working current: | 30 A |
| Contact resistance: | 5 mΩ |
| Temperature range: | -25°C up to +80°C |
| Termination: | screw |
| Item: | Type: | Colour: |
|---|---|---|
| 932153100 | SLS 200 | black |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | HIRSCHMANN Test & Measurement a Brand of SKS |
