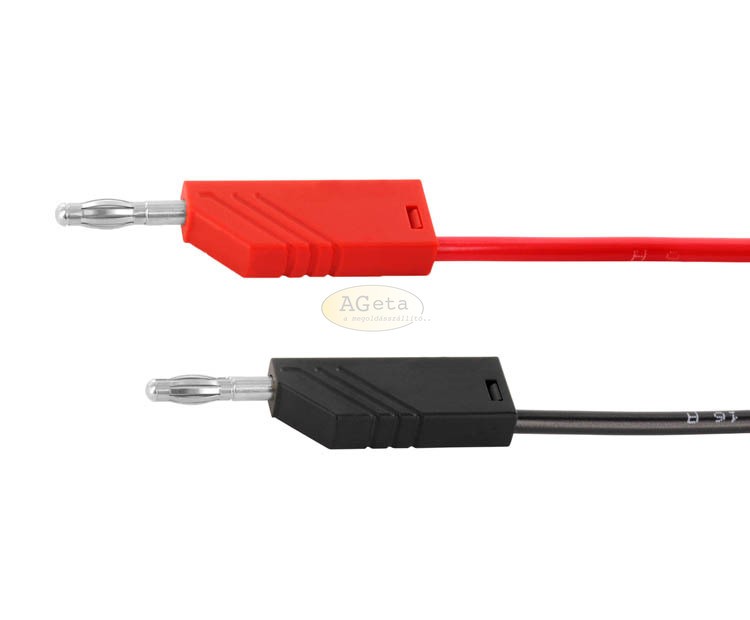

Injection-moulded silicon measuring lead, at either end: 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, short-term resistance to soldering iron grip and lead shatter-proof.
Cross-section: 1.0 qmm / Length: 100 cm / Silicon
| Operating voltage: | 60 V DC |
| Working current: | 16 A |
| Contact resistance: | 22 mΩ |
| Temperature range: | -15°C up to +70°C |
| Termination: | pin and jack 4 mm |
| 934092101 | MLN SIL 100/1 | red |
