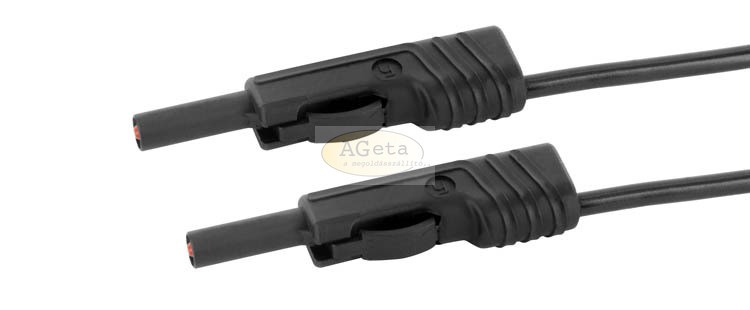

Contact-protected measuring lead, at either end: 4 mm diameter plug, insulated by latching and sprung insulating sleeve which is only released by pressure on the side-mounted locking spring. 4 mm diameter nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded conductor.
Cross-section: 1.0 qmm / length: 100 cm / PVC
| Operating voltage: | 60 V DC |
| Working current: | 16 A |
| Contact resistance: | 22 mΩ |
| Temperature range: | -15°C up to +70°C |
| Termination: | pin and jack Ø 4 mm |
| 973646100 | MLB 100/1 V | black |
