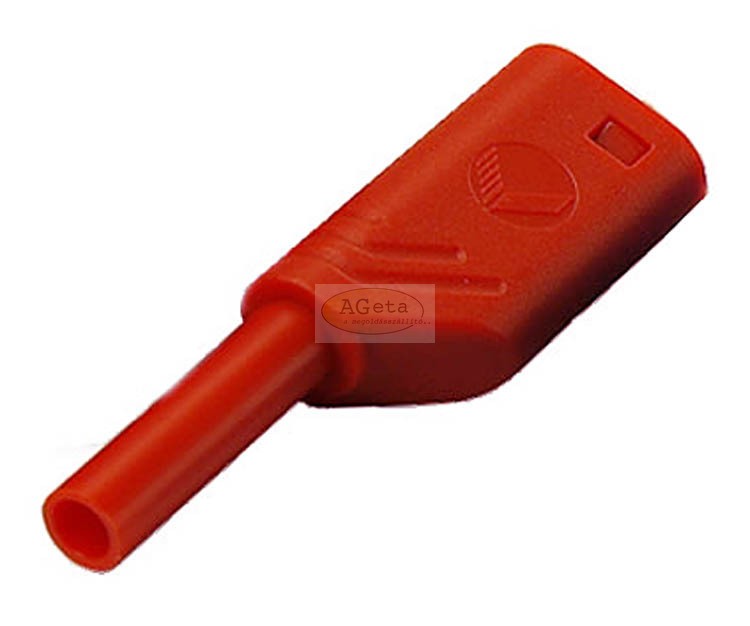

Safety connector for tower construction with soldering connection for leads from 0.5 sqmm to 1.0 sqmm, outer diameter of lead max. 2.9 mm. Plug 2mm with caged spring, 1000 V-system, IEC 61010.
| Specification: | |
|---|---|
| Contact material: | Copper beryllium, gold plated |
| Operating voltage: | 1000 V AC/DC |
| Overvoltage categorie: | 3 |
| Working current: | 10 A |
| Contact resistance: | 2 mΩ |
| Temperature range: | -25°C up to +70°C |
| Termination: | solder |
| Item: | Type: | Colour: |
|---|---|---|
| 975090701 | MST S WS 30 Au | red |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | HIRSCHMANN Test & Measurement a Brand of SKS |
