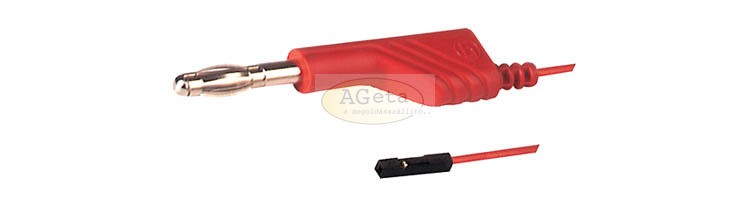

Injection-moulded measuring lead with sprung 4 mm diameter plug and 4 mm diameter socket for further connection and unsulated socket for 0.64 mm square-pillar. Highly flexible 0.25 qmm stranded wire.
| Specification: | |
|---|---|
| Operating voltage: | 60 V DC |
| Working current: | 3 A |
| Contact resistance: | 70 mΩ |
| Temperature range: | -15°C up to +70°C |
| Termination: | Plug 4 mm and jack 0.64 mm |
| Dimensions (mm) |
| Item: | Description: | Colour: |
|---|---|---|
| 934160100 | MAL N-4-0,64/100-0,25 | black |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | HIRSCHMANN Test & Measurement a Brand of SKS |
