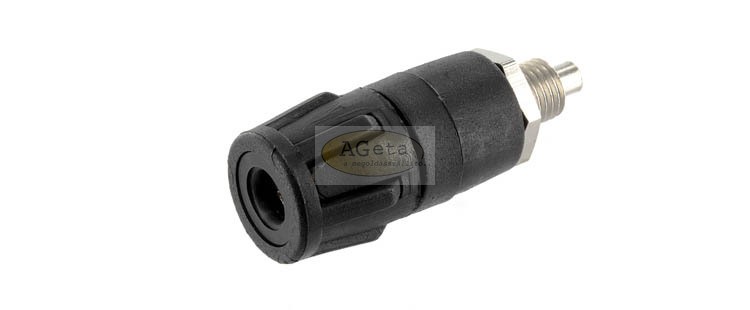

Insulated binding post with Ø 4 mm rigid socket and insulated head undetachable Ø 2 mm cross hole for quick wire connection, machined brass. Suitable for mounting on panels or test boards with anit-rotation lug up to 4 mm thick.
| Specification: | |
|---|---|
| Rated voltage: | 30 V AC ~ 60 V DC |
| Working current: | max. 35 A |
| Contact plating: | Nickel |
| Termination: | Threaded bolt M6x0.75 |
| Item: | Type: | Colour: |
|---|---|---|
| PKUI35RT | PKUI-35 | red |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Multi-Contact |
