The M12 receptacles are offered either with control cable sets or with print contacts for mounting on PCBs.
Thanks to their robust design they are able to withstand even rugged environmental conditions and extreme temperatures.
The M12 receptacle connectors thus offer highly available and cost-effective solutions for data communication in the field of automation.

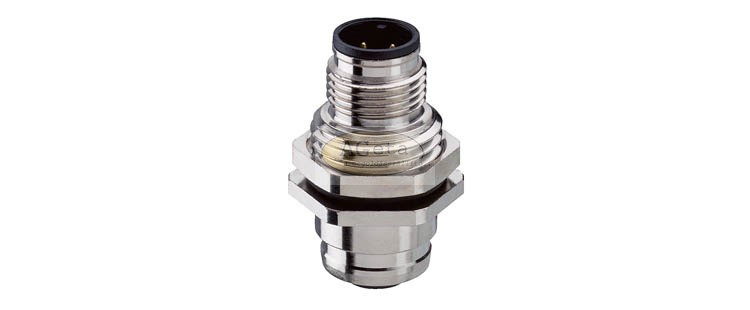

Receptacle connector, combined FIXCON/M12 male connector to combined FIXCON/M12 female connector.
especially designed for use as panel feed through
Thanks to their robust design they are able to withstand even rugged environmental conditions and extreme temperatures.
The M12 receptacle connectors thus offer highly available and cost-effective solutions for data communication in the field of automation.
Receptacle connector, combined FIXCON/M12 male connector to combined FIXCON/M12 female connector.
| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Protection class: | IP 67 * |
| Electrical characteristics: | |
| Current rating: | 3 to 5 poles 4 A |
| Voltage rating: | 3 to 4 poles 240 V |
| 5 poles 60 V | |
| Nominal voltage: | 3 to 4 poles 250 V |
| 5 poles 63 V | |
| Test voltage: | 3 to 4 poles 2.0 kV eff. / 60 s |
| 5 to 8 poles 1.5 kV eff. / 60 s | |
| Insulation resistance: | > 10 GΩ |
| Pollution severity: | 3 |
| * Only in locked position with its proper counterparts. |
| Specification: | |
|---|---|
| Materials: | |
| Housing / Moulded body: | CuZn, nickel plated |
| Insert Male: | PA 6.6 |
| Insert Female: | TPU, self-extinguishing |
| Contact: | CuZn, pre-nickeled and 0.8 ľm gold plated |
| O-ring: | FKM |
| Electrical data: | |
| Contact resistance: | ≤ 5mΩ |
| Thermal characteristics: | |
| Temperature range: | -25 °C up to +80 °C |
| Item: | No. of contacts: | Factory number: |
|---|---|---|
| LU54218 | 5 | FWD 5 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Lumberg |
